Product Details
Mini Infrared Thermometer -35~300℃, Distance to Spot 6:1, Response Time 250ms, Max/Min/AVG, Lock Measurement, Data Hold, Auto Power Off, Low Battery Indication, Power Off Memory, Emissivity 0.95, Spectral Response : 8um~14um

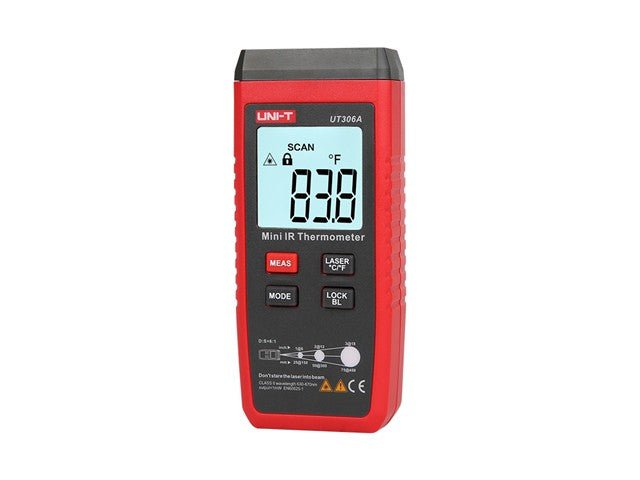

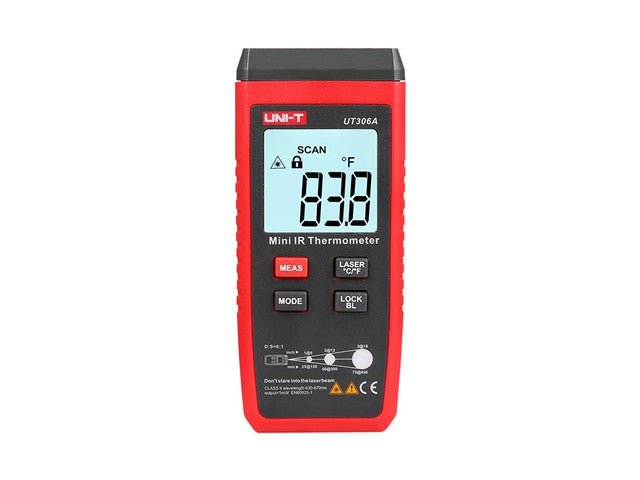

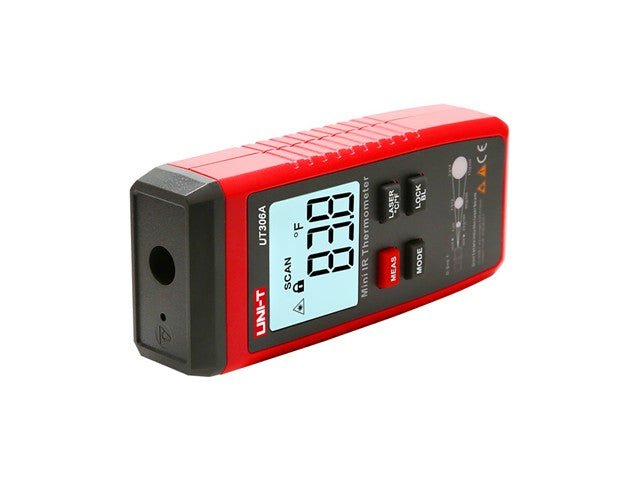

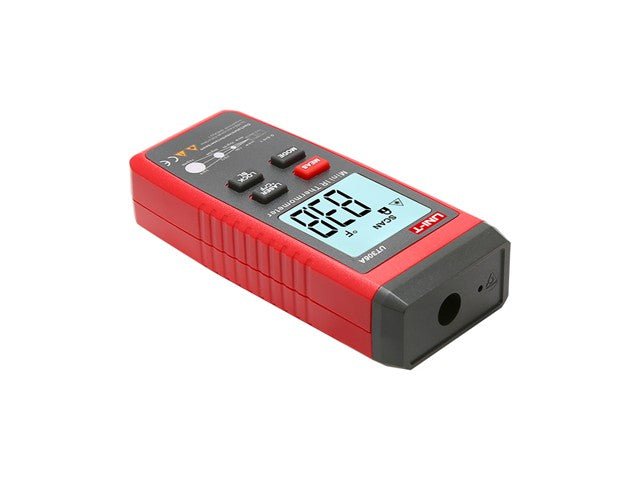

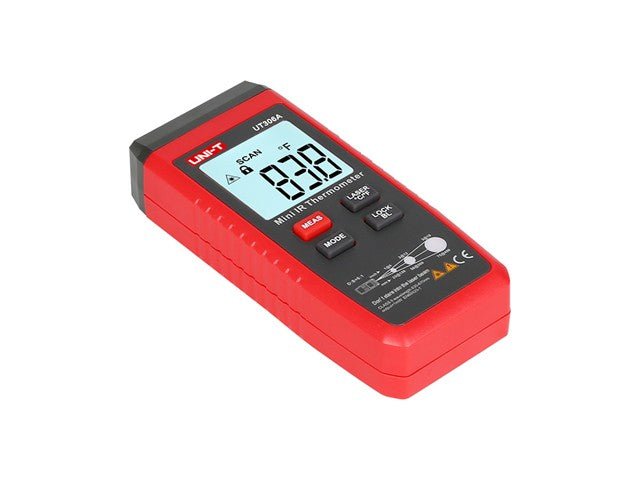

Mini Infrared Thermometer
Overview
UT306A is a portable non-contact thermometer. This device’ s miniature design is convenient to carry and suitable for everyday temperature measurement needs. UT306A is designed to counter environmental interference, ensuring accurate temperature readings under various measurement environments.
Features
- Single-laser targeting
- White backlight
- Max/Min/Avg modes
- Lock measurement
- Data hold; auto power off
- Low battery indication
- Power-off memory
- ℃/℉ selections
Specifications
| Specifications | UT306A |
| Temperature range | -35℃~300℃ |
| -31℉~572℉ | |
| Accuracy | ≥0℃: ±2.0℃ or ±2%; <0℃: ±(2.0℃+0.1℃/℃) |
| ≥32℉: ±4.0℉ or ±2%; <32℉: ±(4.0℉+0.1℉/℉) | |
| D:S ratio | 6:01 |
| Response time | <250ms |
| Emissivity | 0.95 |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
| Features | |
| Auto power off | Yes |
| Low battery indication | Yes |
| Data hold | Yes |
| ℃/℉ selection | Yes |
| MAX/MIN/AVG mode | Yes |
| Lock measurement | Yes |
| Backlight | Yes |
| Laser | Yes |
| Operating temperature | 0℃~50℃ (32℉~104℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 1m |
| General Characterisitics | |
| Power | 1.5V battery (R03) x 3 |
| Display | 37.4mm x 36.4mm |
| Product color | Red and grey |
| Product net weight | 120g |
| Product size | 120mm x 53mm x 28mm |
| Standard accessories | Batteries |
| Standard individual packing | Gift box, English manual |
Downloads
Additional Information
| Device | Thermometer |
| Type | Mini | Infrared | Thermometer |
