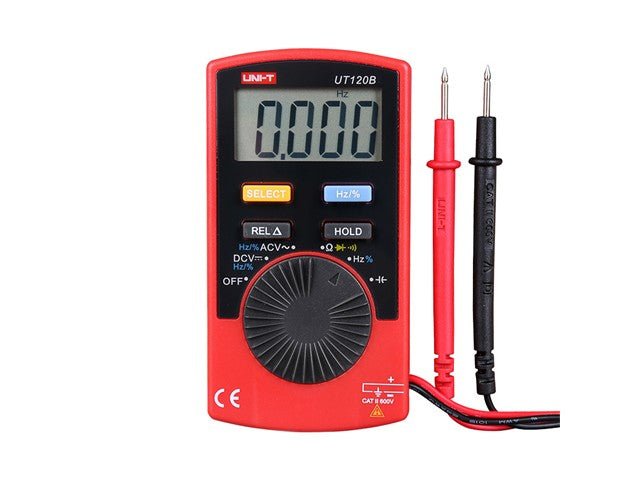

Digital Multimeter Pocket Size 600V AC/DC RES/CAP & Freq Display Count:4000 Auto Range
Pocket Size Digital Multimeter
Features
- Auto power off
- Auto range
- 4000 display count
- Data hold and relative mode
Specifications
| Specifications |
Range |
UT120B |
| DC voltage (V) |
600V |
±(0.8%+1) |
| AC voltage (V) |
600V |
±(1.2%+3) |
| DC current (A) |
400mA |
 |
| AC current (A) |
400mA |
 |
| Resistance (Ω) |
40MΩ |
±(1%+2) |
| Capacitance (F) |
100μF |
±(4%+3) |
| Frequency (Hz) |
10MHz |
±(0.5%+3) |
| Features |
| Display count |
 |
4000 |
| Auto range |
 |
Yes |
| Duty cycle |
0.1%~99.9% |
Yes |
| Diode |
 |
Yes |
| Auto power off |
Around 30 minutes |
Yes |
| Continuity buzzer |
 |
Yes |
| Low battery indication |
≤2.4V |
Yes |
| Data hold |
 |
Yes |
| Relative mode |
 |
Yes |
| Input impedance for DCV |
Around 10MΩ |
Yes |
| General Characteristics |
| Power |
3V battery (CR2032) |
| Display |
43mm x 22mm |
| Product color |
Red and grey |
| Product net weight |
76g |
| Product size |
110mm x 58.2mm x 10.8mm |
| Standard accessories |
Battery, carrying case |
| Standard individual packing |
Blister, English manual |
| Standard quantity per carton |
100pcs |
| Standard carton measurement |
750mm x 275mm x 490mm (0.1CBM per export carton) |
| Standard carton gross weight |
20kg |
Downloads
Additional Information
| Device |
Multimeter |
| Type |
Digital |
