Automotive Digital Multimeter True RMS, 1000V AC/DC 10A AC/DC (20A for 10s Max), RES(Ω):60MΩ, CAP(F):100mF, FREQ:10Hz~10MHz, Temp(°C):-40°C~1000°C, TEMP(°F):-40°F~1832°F, VFC:1000V, RPM:2STR/4STR, Pulse Width:999.9mS, Display Count:6000

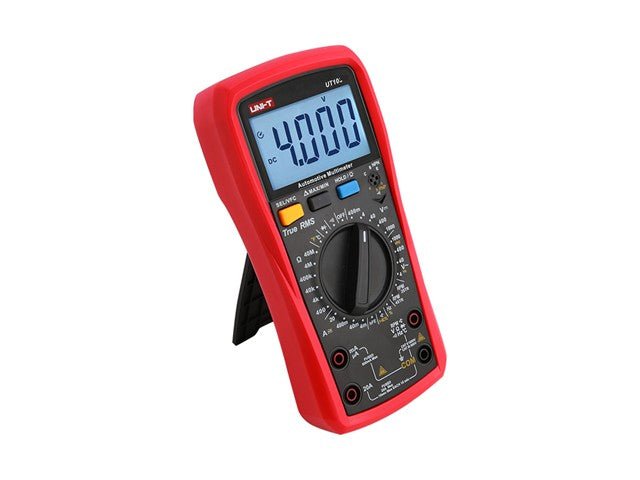

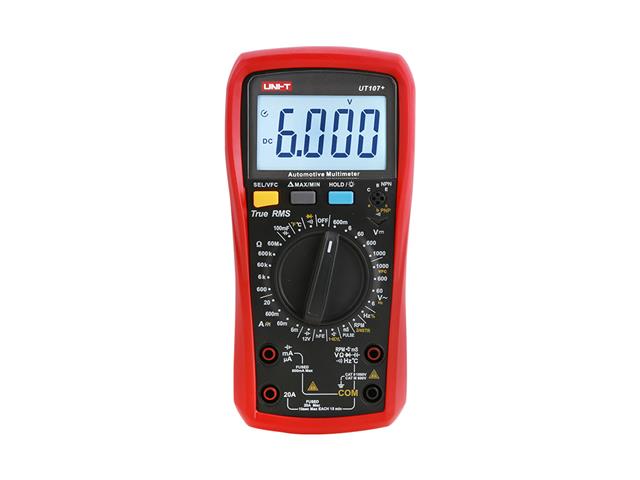

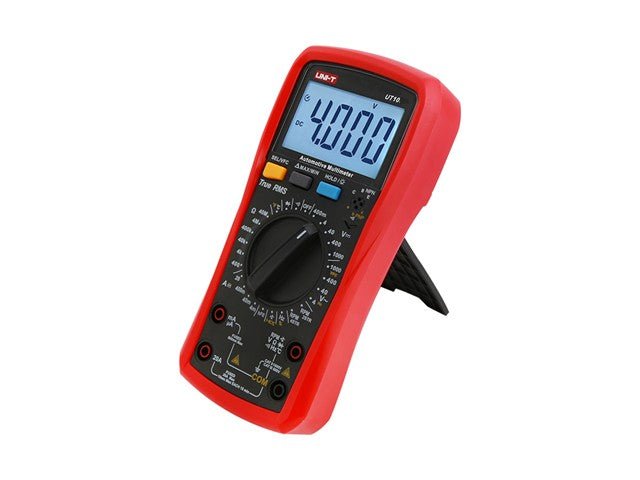

True RMS Automotive Digital Multimeter
Features
- True RMS
- 1000V AC/DC voltage measurement
- 10A AC/DC current measurement (20A for 10s max)
- VFC 1000V voltage measurement
- Dwell angle 1-8CYL
- RPM 2STR/4STR
- Capacitance/Pulse width/12V battery test (UT107+)
- Temperature/Resistance/Frequency
- Data hold/Relative mode/Duty cycle
- Diode/Transistor
- Backlight
- CAT II 1000V/CAT III 600V
Specifications
| Specifications |
Range |
UT107+ |
| DC voltage (V) |
400mV/4V/40V/400V/1000V |
|
| 600mV/6V/60V/600V/1000V |
±(0.5%+3) |
| AC voltage (V) |
4V/40V/400V/1000V |
|
| 6V/60V/600V/1000V |
±(0.8%+3) |
| AC current (A) |
4mA/40mA/400mA/10A (20A for 10s max) |
|
| 6mA/60mA/600mA/10A (20A for 10s max) |
±(1.0%+8) |
| DC current (A) |
4mA/40mA/400mA/10A (20A for 10s max) |
|
| 6mA/60mA/600mA/10A (20A for 10s max) |
±(0.8%+8) |
| Resistance (Ω) |
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
|
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
±(0.8%+3) |
| Capacitance (F) |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF |
±(3%+10) |
| Frequency (Hz) |
10Hz~10MHz |
±(0.1%+5) |
| Temperature (℃) |
-40℃~1000℃ |
±(1.0%+3) |
| Temperature (℉) |
-40℉~1832℉ |
±(1.5%+5) |
| VFC |
1000V |
±(2.0%+10) |
| RPM |
2STR |
±(3.0%+5) |
| 4STR |
±(3.0%+3) |
| Dwell angle |
1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) |
±(3.0%+5) |
| Pulse width |
999.9mS |
±(1.5%+10) |
| Features |
| Display count |
|
6000 |
| Manual range |
|
Yes |
| Continuity/diode/transistor |
|
Yes |
| Duty cycle |
|
Yes |
| High voltage alarm |
|
Yes |
| High voltage overload alarm |
|
Yes |
| Large current alarm |
|
Yes |
| Low battery indication |
＜ Approximately 2.4V |
Yes |
| Backlight |
|
Yes |
| Auto power off |
Approximately 15 minutes |
Yes |
| Data hold |
|
Yes |
| Max/Min/Relative mode |
|
Yes |
| VFC |
|
Yes |
| 12V battery test |
|
Yes |
| Safety rating |
CAT II 1000V/CAT III 600V |
| General Characteristics |
| Power |
AAA 1.5V x2 |
| Product color |
Red+Gray |
| Product net weight |
348g (Including batteries) |
| Product size |
183 x 88 x 56mm |
| Standard accessories |
English manual,test leads,batteries,temperature probe |
| Standard individual packing |
Gift box,carrying bag |
| Standard quantity per carton |
20 pcs |
| Standard carton measurement |
420×320×300mm |
Downloads
Additional Information
| Device |
Multimeter |
| Type |
True RMS | Automotive | Digital |
