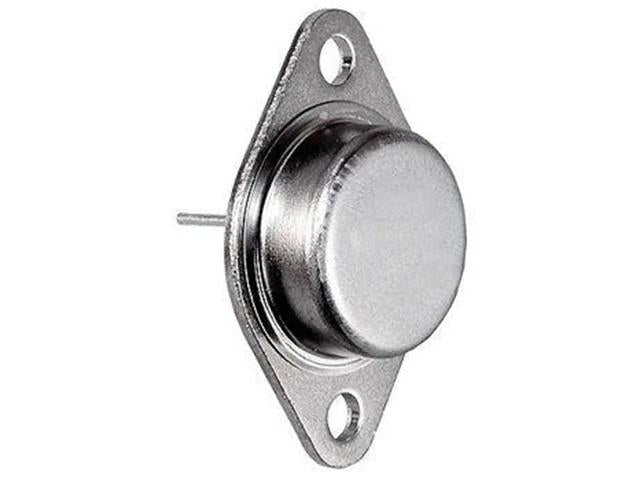

Name: UES2605
Brand: Microchip
SKU: UES2605
Price: 7.95 AED
Availability: InStock

Product Details

Rectifier 300V 30A TO204AA

Specifications

Mounting Style:	Through Hole
Package/Case:	TO-204AA-2
Vr - Reverse Voltage:	300 V
If - Forward Current:	30 A
Type:	Standard Recovery Rectifiers
Configuration:	Single
Vf - Forward Voltage:	1.25 V
Max Surge Current:	300 A
Ir - Reverse Current:	50 uA
Recovery Time:	50 ns
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
