Product Details

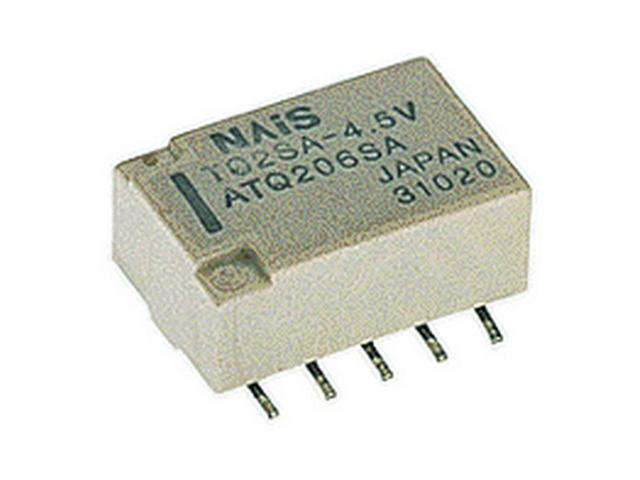

Telecom Relay • Form 2C • VCoil= 5V DC • SMD
Overview
Features
- Polarized
- Doube Coil Latching
Specification
| Model | TQ2SA-L2-5V |
| Contact Form | Form 2C |
| Size Category | Submini |
| Size | 14x9x5mm |
| Termination | SMD |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 1A/30VDC |
| Coil Power | 140mW Power |
| Coil Resistance | 178Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CSA |
| Contact Material | Ag/Au clad |
| No. of Pins | 10 Pin(s) |
| No. of Poles | 2 Pole(s) |
