Product Details
TP-LINK Wireless N Outdoor Access Point Signal Rate:11n:~300Mbps ,11g~54Mbps , 11b~11Mbps , 3.1W , {209x95x42mm} , Antenna:2×3dBi External Omni Waterproof , IEEE 802.11n/g/b , 2.4GHZ , 24V Passive PoE , 1× Fast Ethernet (RJ-45) Port , IP65
Wireless N Outdoor Access Point
Features
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Supports management vlan for an enhanced network management
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 × Fast Ethernet (RJ-45) Port (Support Passive PoE) |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 3.1 W |
| Dimensions ( W x D x H ) | 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm) |
| Antenna Type | 2 × 3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole or wall mounting (mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps* 11g: Up to 54Mbps* 11b: Up to 11Mbps* |
| Transmit Power | < 27dBm |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (adjustable on 1 dBm step) QoS (WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID, AP, and Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local and Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

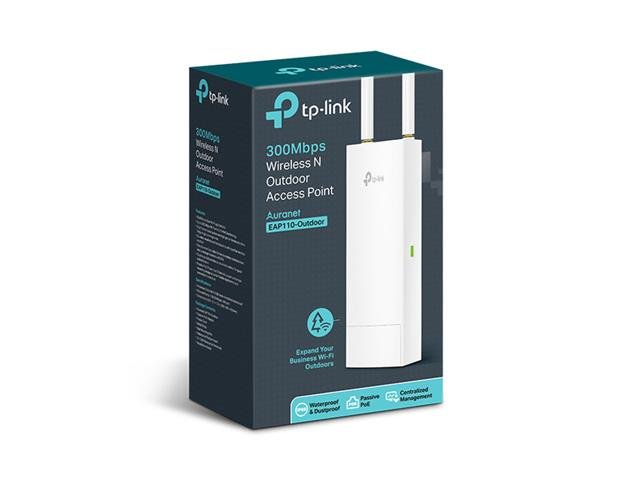

| Package Contents | 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kit Waterproof Rubber Insert Waterproof Antennas Installation Guide |
| Environment | Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Downloads
Additional Information
| Device | Access Point |
| Type | Wireless N | Outdoor |
