Product Details

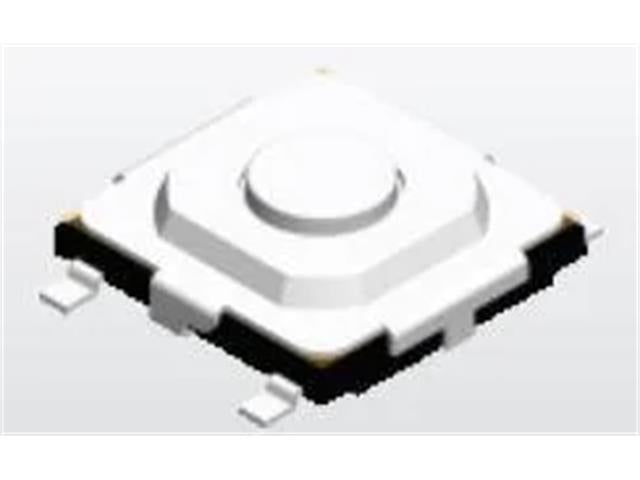

Tactile Switch 5,2x5,2mm Metal Stem/Lever Total HeighT=1,50mm 160gf SMD Gull Wing 50mA 12VDC (Tape & Reel)
Tactile Switch 5,2x5,2mm
Specifications
- Mounting Style : SMD
- Mounting Direction : Straight
- Actuator : Round
- Switch Function : ON - OFF
- Operating Force : 160 gf
- Current Rating : 50 mA
- Voltage Rating DC : 12 VDC
- Ground Terminal : Yes
- Contact Form : SPST
- Termination Style : Solder Pad
- Series : TME
- Packaging : Reel
- Illuminate : Non-Illuminated
- Travel : 0.25 mm
- Maximum Operating Temperature : + 70 C
- Minimum Operating Temperature : - 25 C
Additional Information
| Device | Switch |
| Type | Tactile | Metal Stem/Lever | SMD | Gull Wing |
| Highlights | Gull Wing with Ground Terminal |
