Product Details

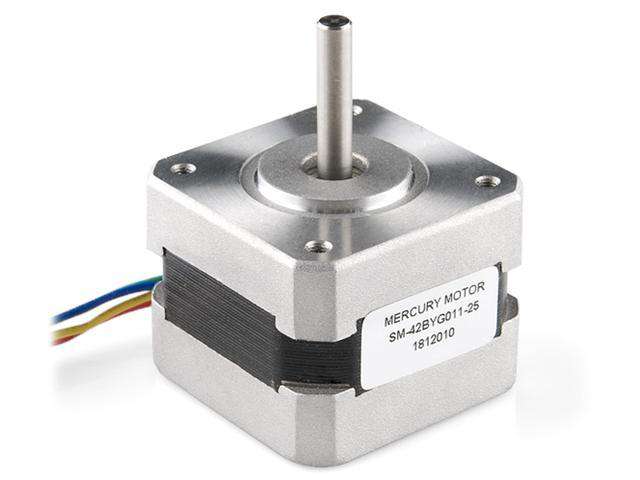

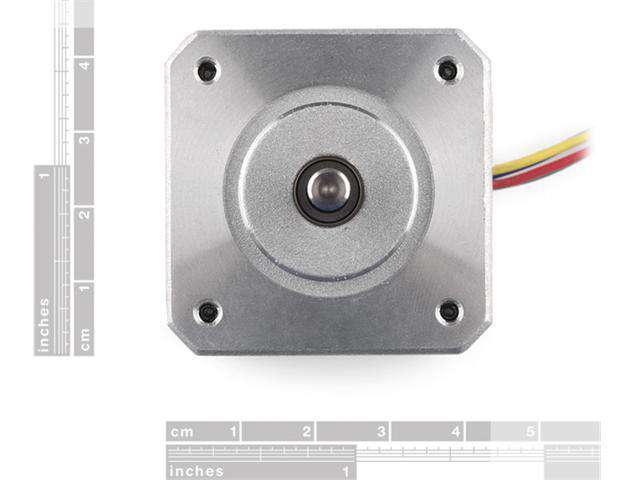

ROB-09238 Bipolar Stepper Motor NEMA16 12V with a 4-wire Cable attached.
Overview
This is a simple, but very powerful Bipolar Stepper Motor with a 4-wire Cable attached.
Features
- Step Angle (degrees) : 1.8
- 2 Phase
- Rated Voltage : 12V
- Rated Current : 0.33A
- Holding Torque : 2.3kg*cm
- 5mm Diameter Drive Shaft
- Winding Resistance : 32.6 O
- Winding Inductance : 48 mH
- Max Flux Linkage : 1.8 Vs
- Maximum Detent Torque : 0.016 N.M
- Total inertia (kg.m.m) : 3.5 Kg.m.m
- Total friction (kg.m/s) : 4 Kg.m/s
- NEMA 16 Mounting Hole Pattern (31mm)
- Motor Width : 42mm
