Product Details

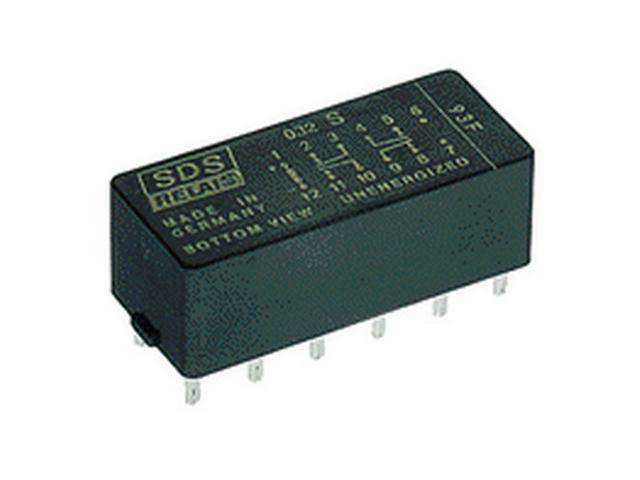

Medium Power Relay • Form 4C • VCoil= 48V DC • IMax Switching= 3A • RCoil= 8.5kΩ • PCB • Low Profile Case
Overview
Features
 Low Profile Case
Specification
Â
| Model | S4-8V |
| Contact Form | Form 4C |
| Size Category | Std size |
| Size | 28x12x10mm |
| Termination | PCB |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 3A |
| Electrical Rating | 3A/30VDC/4A/250VAC |
| Coil Power | 200mW Power |
| Coil Resistance | 8.5kΩ |
| Isolation Voltage | 1K5V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 12 Pin(s) |
| No. of Poles | 4 Pole(s) |
