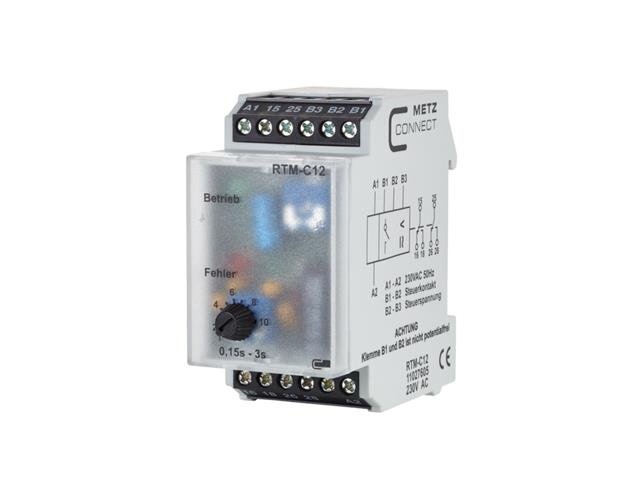

Timer Relay 0,15S-3,0S for Pulse Prolongation. When Control Contact Closed Min. 5 ms, Relay Activates / Releases After Adjusted Pulse Time Has Lapsed. Operating 24VAC/VDC @ 15mA / Output 8A @ 250VAC/VDC Contacts Max.
Timer Relay 0,15S-3,0S for Pulse Prolongation
Feature(s)
The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.
- Adjustable pulse length: 0.15 to 3 s
- Connection with screw-type terminals
Specifications
- Operating voltage : 24 V AC/DC
- Current consumption max. : less than or equal to 15 mA
- Continuous current max. : 8 A

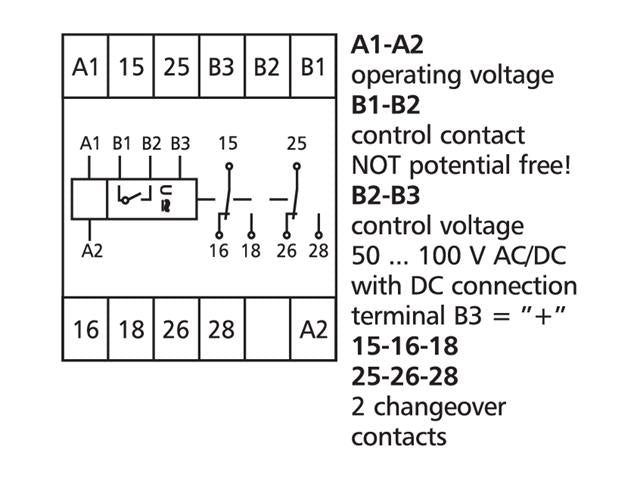

- Output / contact : 2 changeover contacts (DPDT)
- Output / contact material : AgNi90/10 gold plated
- Response time typical : 20 ms
- Release time typical : 20 ms
- Recovery time : greater than or equal to 20 ms
- Minimum switch-on duration : greater than or equal to 5 ms
- Mechanical endurance : 3 x 107
- Electrical endurance : 1 x 105
- Wire cross section solid wire : 2.5 mm² / AWG 14

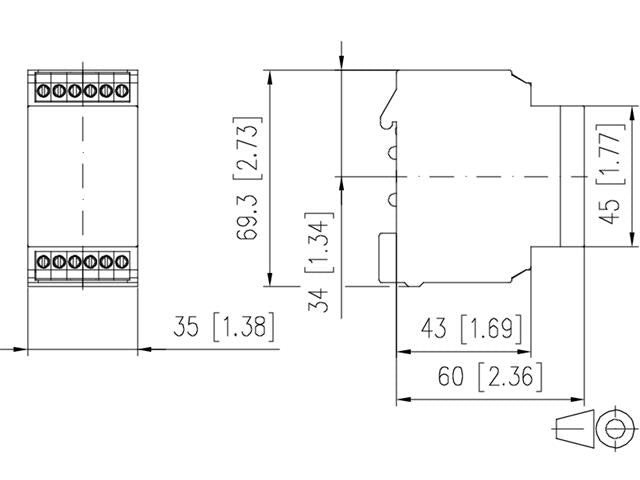

- Dimensions (W x H x D) : 35 x 69.3 x 60 mm
- Weight : 100 g
- Operating temperature range : -10 °C to +55 °C
- Storage temperature range : -25 °C to +70 °C
- Ingress protection for housing / terminal block : IP40 / IP20
Additional Information
| Device | Timer Relay |
| Type | for Pulse Prolongation |
