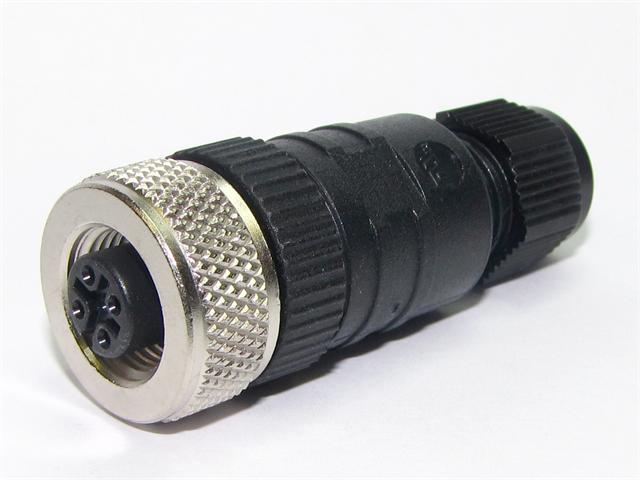

Circular Connector M12 A COD Cable Female Straight. 5 Pole Screw Terminal PG7 Cable Entry
M12 A COD Cable Female Straight Circular Connector
Specifications
| Type |
M12 Circular |
| Gender |
RCP |
| Mounting |
Cable Mount |
| Body Orientation |
Straight |
| Number of Ports |
1 |
| Number of Contacts |
5 |
| Number of Terminals |
5 |
| Contact Gender |
SKT |
| Termination Method |
Screw |
| Wire Size (AWG) |
19 |
| Less Contact |
No |
| Contact Material |
Brass |
| Contact Plating |
White Bronze Over Copper |
| Shell Material |
Brass |
| Shell Plating |
Nickel |
| Maximum Current Rating (A) |
4 |
| Maximum Voltage Rating |
63V |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
90 |
| IP Rating |
IP67 |
| Insulation Resistance (MOhm) |
1000 |
| Maximum Contact Resistance (mOhm) |
5 |
| Mating Style |
Threaded |
| Product Diameter (mm) |
20 |
| Product Length (mm) |
52.5 |
Additional Information
| Device |
Connector |
| Type |
M12 | A COD | Cable | Female | Straight | Circular |
