PTL23636

Fast, accurate Checking of VDV Cables and in-Wall Wiring.

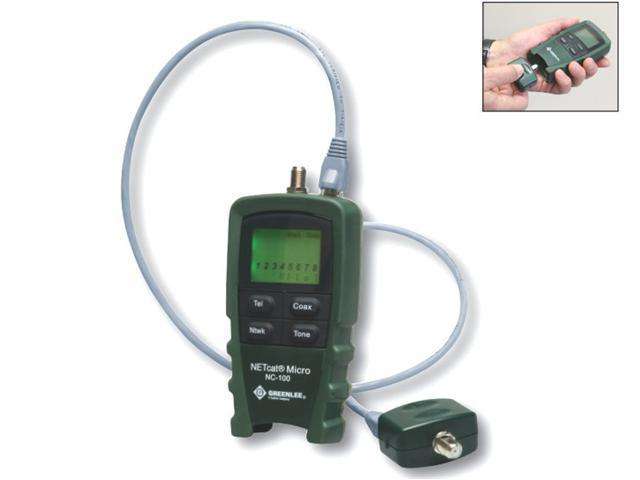

The NETcat Micro is a device that verifies the integrity of both twisted pair and coaxial telecom cables. It uses high-speed digital technology to verify wiring continuity and check for the correct allocation of wire pairs, showing the results on a backlit display. Four durable keys select the test and wire tracing modes.

A wide range of tracing tone options makes it easy to track and identify high performance Category 5/6/7 wiring, and the tracing tones are compatible with Greenlee’s 200XP noise-immune tone probe. An auto-off function helps extend battery life.

• Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables.
• TIA/EIA standard wiring pair verification.
• Detects shorts, opens, reversed polarity, crossed and split pairs.
• Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting.
• tracing modes can be adjusted for high performance LAN cables.
• Complete set of connector types standard (telephone, LAN and coax).
• Nested remote allows end-to-end testing of all wiring types.
• Simple testing of LAN wiring and phone lines.
• Detection of common wiring and connector errors.
• Warning of hazardous voltages.
• Checks for reversed telephone wires.
• NETcat @ Test shielded twitsted pair (STP),unshielded twisted pair (UTP) & Coaxial Cables
• Detects shorts,opens,reversed polarity,crossed & split pairs
• LCD Display
• Tracing modes can be adjusted for high performance LAN Cables
• Simple testing of LAN wiring & phone Lines
• INCLUDES - 9V Battery

• Dimensions : 150 x 70 x 33mm
• Weight : 220g including remote unit and battery
• Power Source : 9V Alkaline battery (PP3)

User Interface

• Display LCD : Icon and seven segment type
• Backlight : Green LED
• Buttons : Four momentary contact push button

Environmental

• Operating temperature : 0°C to 50°C
• Storage temperature : -10°C to 60°C
• Humidity : up to 95% non-condensing

Interface Connections

• RJ45 shielded socket
• RJ12 6-way socket
• F-type threaded female coaxial connectors

Network split Pair Detection

• Minimum cable length : 2 to 3 meters (5 to 10 ft.) depending on cable type

Pair Tracing Tones

• Alternating frequencies of 577Hz and 983Hz are produced at three user selectable rates. Designed for standard tone probes, but compatible with precision digital Greenlee tone probes.
