Product Details

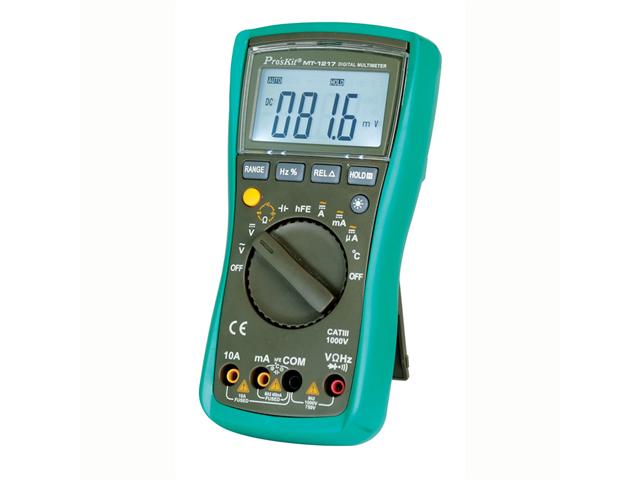

Auto Range Digital Multimeter - 3 3/4
Auto Range Digital Multimeter - 3 3/4
Features
- Complies with newest CE safety standard
- 3 3/4 digits 3999 counts
- Large and easy to read display panel
- Overload and resettable fuse protection circuit design
- Extra function: Auto range, relative reference, backlight, data hold, auto power off, low battery indication
Specifications
- DCV : 400mV/4V/40V/400V ±(0.5%+4d), 1000V ±(1.0%+6d)
- ACV : 4V/40V/400V ±(0.8%+6d), 750V ±(1.0%+10d)
- DCA : 400µA/4000µA ±(1.0%+10d), 40mA/400mA ±(1.0%+10d), 4A/10A±(1.2%+10d)
- ACA : 400µA/4000µA ±(1.5%+10d), 40mA/400mA ±(1.5%+10d), 4A±(2.0%+15d) ; 10 A±(2.5%+15d)
- Resistance : 400O ±(0.8%+5d), 4k/40k/400KO/4MO± (0.8%+4d), 40MO ±(1.2%+10d)
- Frequency : 400/4K/20KHz ±(0.5%+10d)
- Capacitance : 40nF ±(0.5%+30d), 400nF/4µF/20µF ±(3.5%+8d)
- Temperature : (-20º~1000º) < 400º±(1.0%+5d) (-20º~1000º) >= 400º±(1.5%+15d)
- Duty Cycle : 0.1%~99.9%
- Continuity with beeper : Y, Diode Tes : Y
- Transistor hFE test : Y (with socket)
- Fuse : 0.4A/250V Resettable fuse, 10A/250V Fuse
- Power source : 9Vx1(not included)
- Size (HxWxD)mm : 182×90×46mm
- Individual packing : Color Box
Additional Information
| Device | Multimeter |
| Type | Auto Range | Digital | 3 3/4 |
