Product Details

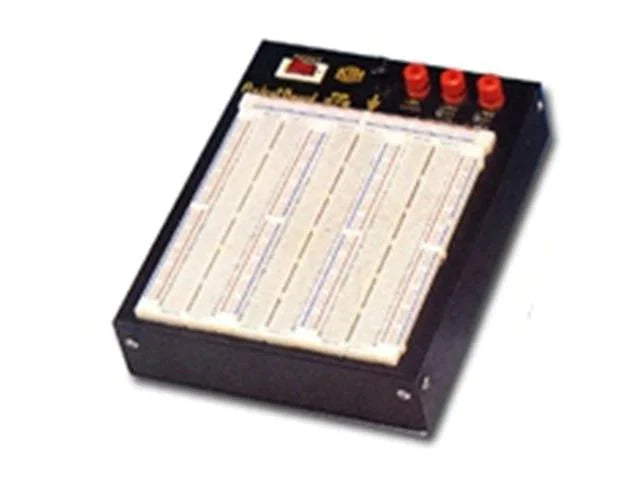

PP-272 Power Project Board with Prototyping Breadboard and Power Supplies. 5V/1A 0~±15V/500mA 2420 tie points
Specifications
- DC Power +5V/1A | Variable power 0~±15V / 500mA with short circuit protection
- Solderless Breadboard RH-53 interconnected 2420 tie points
- Edge plate: EP-3 edge plate for the best placement of non-dip size components
- Power Switch with light
- AC 110V / 220V | 120V/240V | 50/60Hz
- Dimension : Main body 250 x 200 x 80 mm, With box 305 x 235 x 85mm
- Weight : 2.5Kg
Additional Information
| Device | Power Project Board |
