Product Details

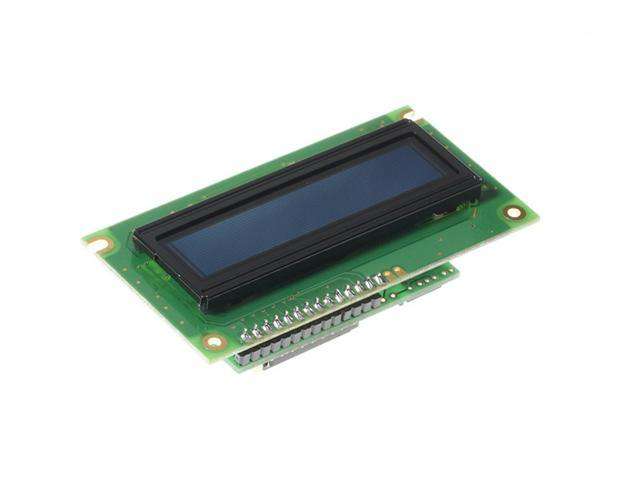

AXE133 Serial LCD Module Kit includes a 16x2 LCD together with a small 'serial interface' PCB fitted with a PICAXE-18M2 chip
Overview
This serial LCD kit includes a 16x2 LCD together with a small 'serial interface' PCB fitted with a PICAXE-18M2 chip. The on-board PICAXE-18M2 chip is provided pre-programmed with the open-source AXE133 firmware, which allows this on-board 18M2 chip to act as a 'slave' serial driver for the LCD display. This allows your main project to display text on the serial LCD via simple serout commands, such as serout B.7, N2400, ("Hello")
The control codes are identical to our popular AXE033 module, so this kit can be used as an altenate to the AXE033. On this board the slave chip is a completely normal 18M2, so it can also be reprogrammed whenever you want (e.g. to change the power-up welcome message or even temporarily 'borrowed' for another project!). Click on the resources tab above to download the AXE133 BASIC firmware file.
Self assembly kit including 16x2 LCD display, 18M2, PCB and all components - requires simple soldering.
