Product Details

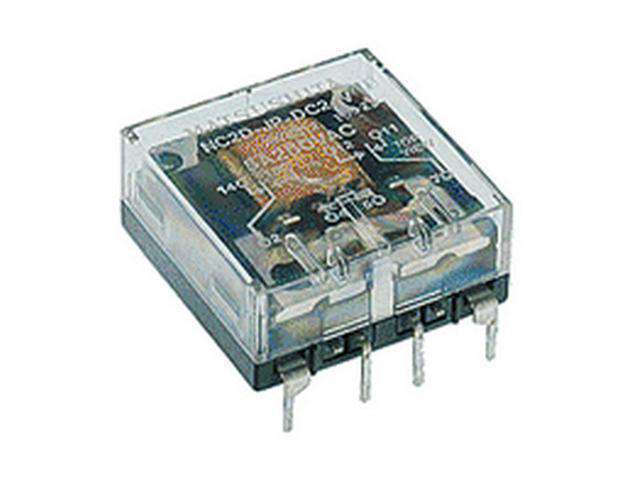

Medium Power Relay • Form 4C • VCoil= 24V DC • IMax Switching= 5A • RCoil= 800 Ω • PCB • Horizontal Case
Overview
Features
- Bifurcated Contacts
- Horizontal Case
Specification
| Model | NC4ED-JP-DC24V |
| Contact Form | Form 4C |
| Size Category | Std Size |
| Size | 38x25x11mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A/250VAC |
| Coil Power | 720mW Power |
| Coil Resistance | 800 Ω |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 14 Pin(s) |
| No. of Poles | 4 Pole(s) |
