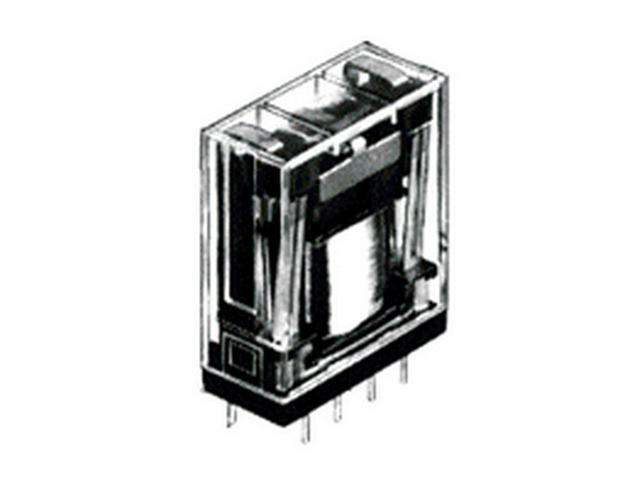

Product Details
Medium Power Relay • Form 2C • VCoil= 5V DC • IMax Switching= 5A • RCoil= 69Ω • PCB • Vertical Case
Overview
Features
 Bifurcated Contacts
Specification
Â
| Model | NC2D-P-DC5V |
| Contact Form | Form 2C |
| Size Category | Std Size |
| Size | 25x11x28mm |
| Termination | PCB |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A/250VAC |
| Coil Power | 360mW Power |
| Coil Resistance | 69Ω |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
