Product Details

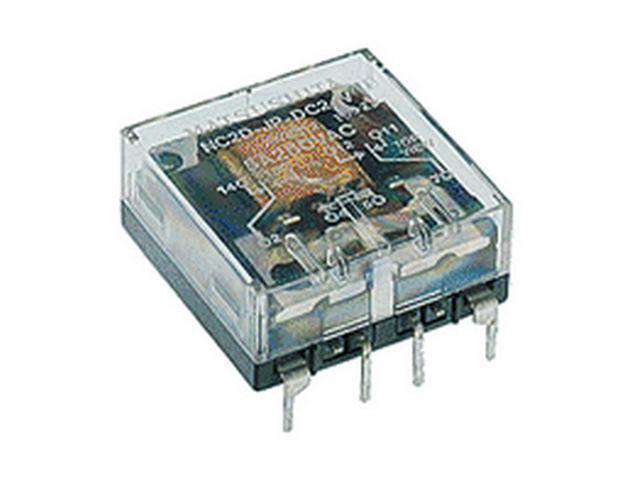

Medium Power Relay • Form 2C • VCoil= 24V DC • IMax Switching= 5A • RCoil= 720Ω • PCB • Horizontal Case
Overview
Features
Â
- Bifurcated Contacts
- Double Coil Latching
- Horizontal Case
Specification
Â
| Model | NC2D-JPL2D-C24V |
| Contact Form | Form 2C |
| Size Category | Std Size |
| Size | 25x25x11mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A/250VAC |
| Coil Power | 800mW Power |
| Coil Resistance | 720Ω |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 10 Pin(s) |
| No. of Poles | 2 Pole(s) |
