Product Details

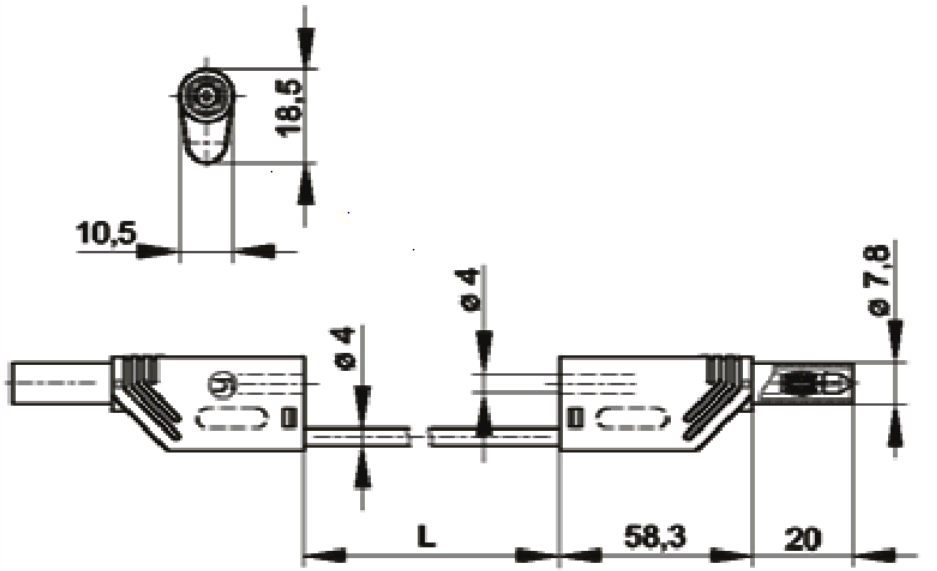

4mm Stackable PVC Safety Test Lead with 1mm sq. Straight Shroud Plug to Shroud Plug in Black 100 cm in length
Overview
Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages
Downloads
Additional Information
| Group | Test Leads |
| Device | Test Lead |
| Type | PVC |
| Highlights | Highly Flexible Lead |
| Colour | Black |
| Size | 4mm |
| Cable Length | 100 cm |
| Conductor Size | 1mm² |
| Contact Resistance | 22mΩ |
