Product Details

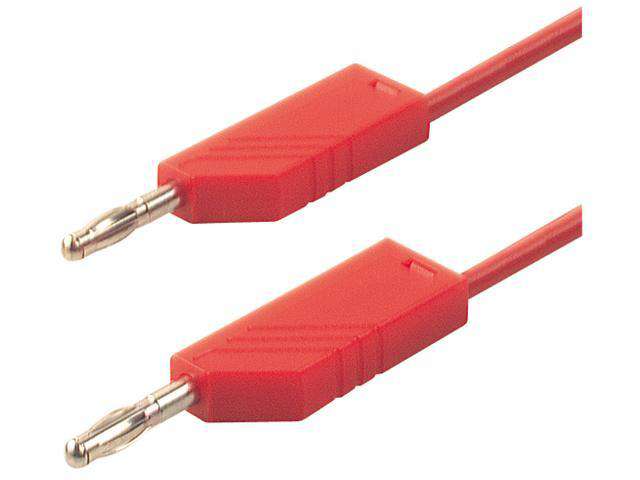

PVC Test Lead • Red • 1.5 meter
Overview

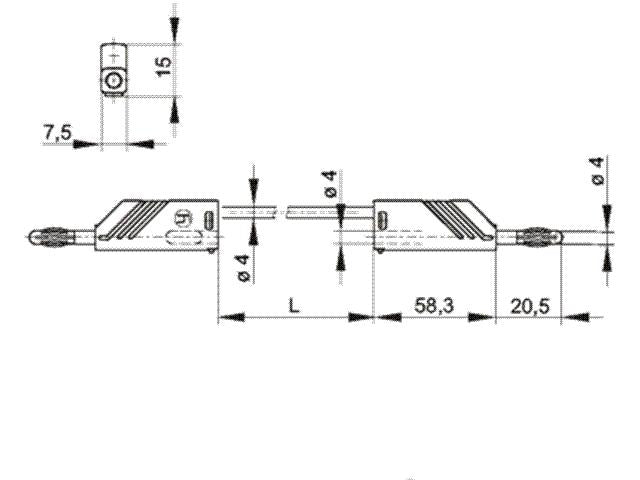

Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
Features
Specification
| Rating | 60VDC 16A |
| Colour | Red |
| Size | 4mm |
| Cable Length | 1.5 meter |
| Conductor Size | 1mm² |
| Contact Resistance | 34mΩ |
