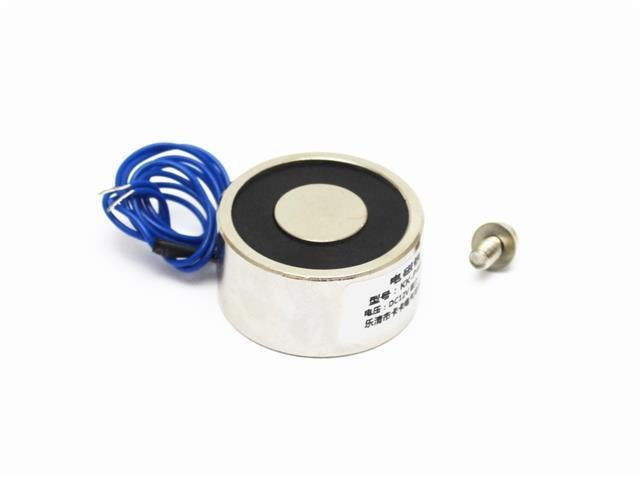

Lifting Magnet (Electromagnet). 8Kg Holding Force. 12VDC 0.13A 1.5W
8Kg Holding Force Lifting Magnet
Overview
This is a 12V DC electromagnet with a 30kg lifting force. A lifting solenoid electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied.
Note: Images seen may be different from actual product in terms of dimensions
Features
Precaution
- Electromagnets are specified with a "holding force" of say 8kg.
- This is not how much weight they can pick up!
- Divide the holding force by about 5 to get a rough estimate of how heavy a thing it can pick up.
- So in this case, about 1.6kg max.
- Note that pick-up weight also depends on a flat surface, maximum surface contact and the ferromagnetic metal content of the object to be picked up.
- A perfectly flat steel cube will work great, something oddly shaped or covered in rubber or plastic will not!
Specifications
- Model : ZX-P25/20
- Thread Size : M4
- Operating Voltage : 12V DC
- Power Consumption : 1.5W
- Holding Force : 8kg
- Total Diameter : ±25mm
- Centre Diameter : ±12mm
- Cable Length : ±330mm
- Height : ±20mm
Additional Information
| Device | Lifting Magnet |
| Type | 8Kg Holding Force |
