Product Details
Digital Capacitance Meter 0,1pF to 20uf
Digital Capacitance Meter
Overview

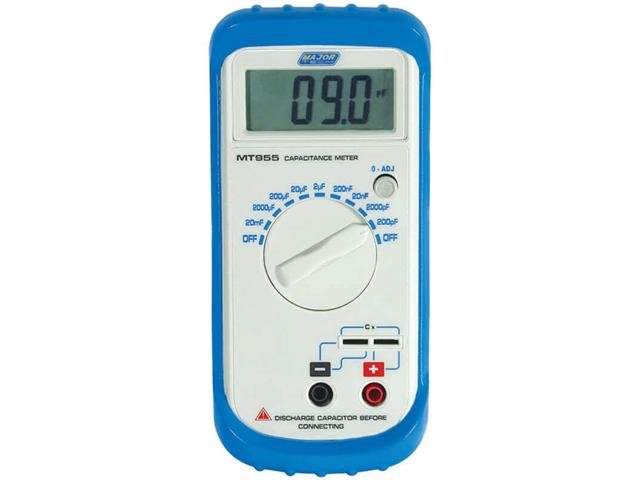

The MT955 capacitance meter is compact in size and lightweight to hold. This meter offers a wide measuring range for all capacitors from 200pF to 20mF. Measurements can be read on the large 2000 count LCD display. This meter includes automatic polarity indication and a zero adjustment for low capacitance range. The MT955 has built-in inputs whereby the capacitors can be inserted directly into the instrument, and for cases where this is not possible due to large capacitors, test leads are supplied.
Features
- Capacitance to 20mF
- 0.1 pF Resolution
- Automatic polarity indication
- Zero adjustment for low capacitance range
- Easy-to-read 31/2 digit 2000 count LCD display
- Low battery indication
Specifications
| Function | Range | Resolution | Accuracy |
| Capacitance | 200pF to 20mF | 0.1pF | ±(0.5% +1 +0.5pF) |
| Overrange Indication | Yes | ||
| “O” Adj. | Yes | ||
| Digital Display | 2000 count LCD | ||
| Enclosure | Rubber holster | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Weight | 190g | ||
| Dimensions | 145 x 69 x 38mm | ||
Downloads
Additional Information
| Device | Capacitance Meter |
| Type | Digital |
