Product Details
24 Versatile Ranges General Purpose Multimeter
General Purpose Multimeter
Overview

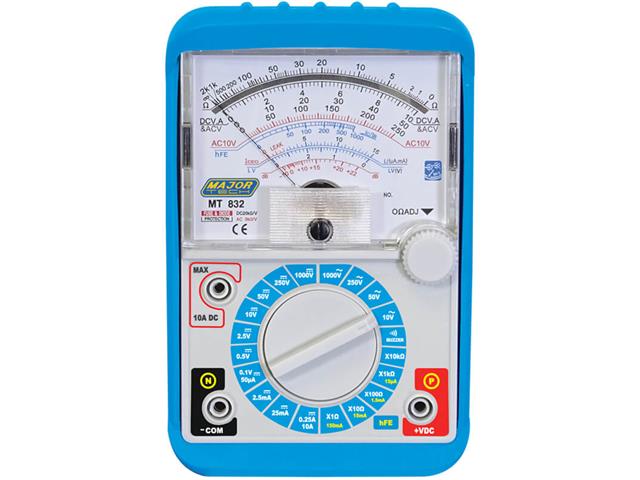

The MT832 Analogue Meter is an ideal meter for general purpose site applications for students, hobbyist and homeowners. The MT832 has 24 versatile ranges, 0 adjust and has a large mirrored scale to easily identify the measurements. This meter is supplied standard with a protective rubber holster.
Features
- 24 Versatile Ranges
- Measures AC and DC Voltage to 1000V
- DC Current to 10 Amps
- Measures Resistance up to 20MΩ
- Large Mirror Scale
- 0 adjust
- Continuity Buzzer
- Transistor test
- 20kΩ/V Sensitivity
Specifications
| DC Voltage |
0, 0.5 , 2.5, 10, 50, 250, 1000V |
|---|---|
| AC Voltage |
10, 50, 250, 1000V |
| DC Current |
50µA , 2.5mA, 25mA, 0,25A, 10A |
| Resistance |
0.2 ~ 20 mΩ |
| dB Measurements |
1dB – 28dB |
| Continuity |
Yes |
| Diode Test |
Yes |
| Battery Test |
Yes |
| Transistor Test PNP Transistors |
Yes |
| Display |
Analogue |
| Overrange Indication |
Yes |
| Enclosure |
Rubber holster |
| Batteries |
1 x 9V and 2 x AA |
| Weight |
280g |
| Dimensions |
170 x 110 x 50mm |
| Safety Specs |
CAT II 600V |
Downloads
Additional Information
| Device | Multimeter |
| Type | General Purpose |
