Product Details

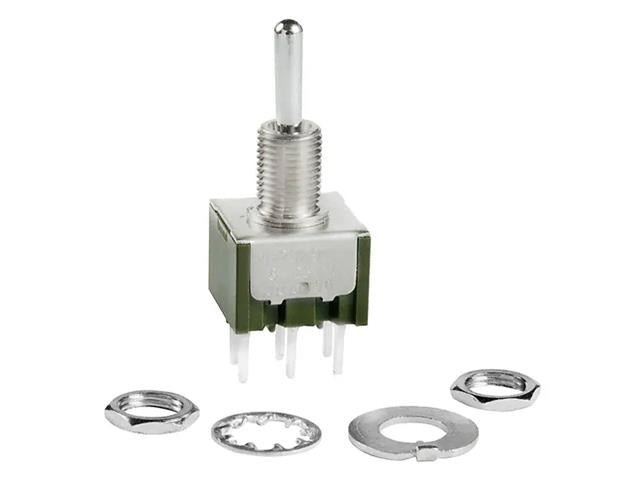

DPDT ON OFF (ON) PCB Tag 6A 125V 10,5mm Bat 8,9mm Threaded Bushing with Keyway Silver Contact Solder Lug
6A 125V Solder Tag Switch
Specifications
- Series : M
- Mounting Type : Panel Mount
- Circuit : DPDT
- Switch Function : On-Off-Mom
- Current Rating (Amps) : 6A (AC), 3A (DC)
- Voltage Rating - AC : 125V
- Voltage Rating - DC : 30V
- Actuator Type : Standard Round
- Actuator Length : 10.50mm
- Illumination : Non-Illuminated
- Termination Style : PC Pin
- Panel Cutout Dimensions : Circular - 6.50mm Dia
- Bushing Thread : 1/4-40
- Features : Epoxy Sealed Terminals
- Operating Temperature : -30°C ~ 85°C
- Actuator Material : Brass, Chrome Plated
- Electrical Life : 25,000 Cycles
Additional Information
| Device | Switch |
| Type | PCB Tag |
