Product Details

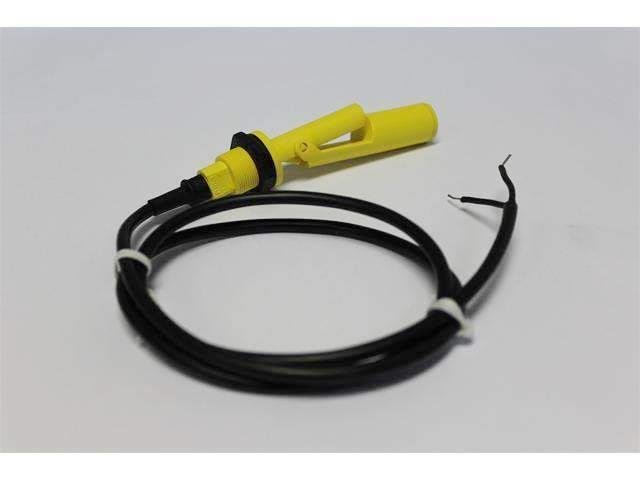

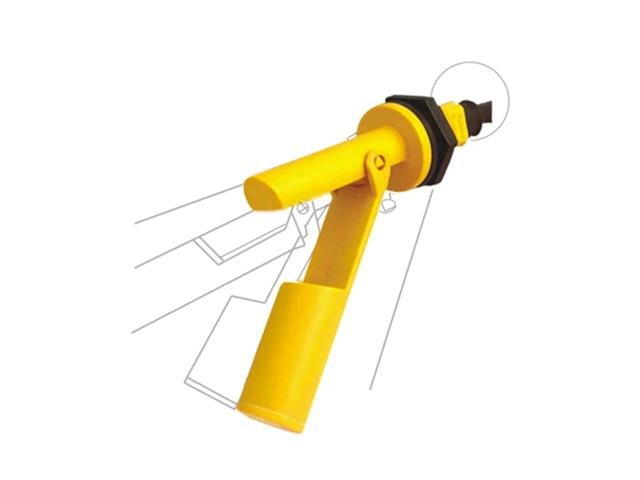

Float Switch - M18 Thread Liquid level up to 80°C - SPDT N/O & N/C - 0,5A/240VAC/VDC IP68
Overview
LS series is featured for concise structure, delicate design, durable operations, and perfect function. They are extensively installed in the fuel tanks, oil-pressure equipment,chemical and cooling vessel, and etc. Furthermore, they are mostly used to sense substance such as water, oil, and chemicals. chemicals
Features
Specification
- Type : Standard
- Sensing medium : Liquid
- Electrical Design : DC/AD
- Output : NO/NC
- Operating Voltage : Max.240V AC/DC
- Current Rating 0.5A (240V AC/DC)
- Socket : M18 Thread
- Capacity : 70W
- Sensing Degree : ±30°
- Stotage Humidity : 20%~70%
- Operating Humidity : 20%~70%
- Operating Temparature : -20°C~80°C
- Ambient Temparature : -20°C~80°C
- Ambient Pressure : 10 bar
- Contact Resistance : 80 Ω
- Housing Material PBT+30%GF
- Connection : 1*PVC Cable
- Protection classification IP68
- Certification : CE, RoHS
