Product Details

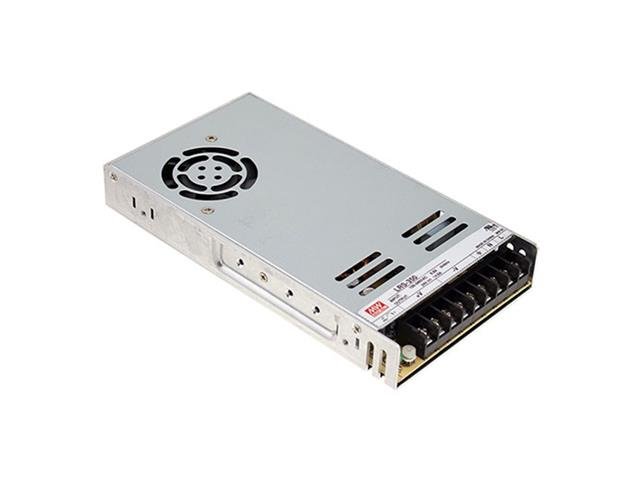

Meanwell 348 Watt Single Output Enclosed Switching Power Supply, 30mm Low Profile, Input: 90 - 132VAC / 180 - 264VAC Selectable By Switch, Output: 12VDC 29A
Single Output Enclosed Switching Power Supply
Specifications
|
Number of Outputs
|
1
|
|
Voltage - Input
|
90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC
|
|
Voltage - Output 1
|
12V
|
|
Current - Output 1
|
29 A
|
|
Power (Watts)
|
348W |
|
Applications
|
ITE (Commercial)
|
|
Voltage - Isolation
|
3 kV
|
|
Efficiency
|
85%
|
|
Operating Temperature
|
-25°C ~ 70°C (With Derating)
|
|
Features
|
Adjustable Output
|
|
Mounting Type
|
Chassis Mount
|
|
Size / Dimension
|
8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm)
|
|
Approval Agency
|
CB, cURus
|
|
Minimum Load Required
|
No
|
Downloads
Additional Information
| Device | Power Supply |
| Type | Single Output | Enclosed | Switching |
