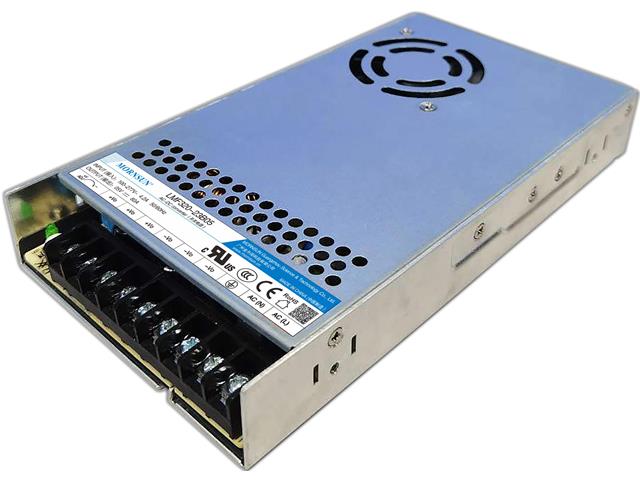

LMF320-23B12

METAL CASE SWITCH MODE POWER SUPPLY

OVERVIEW

LMF320-23Bxx series are one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-in active PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, GB4943, EN60335 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURE

• Universal 85 - 305VAC or 120 - 430VDC Input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating temperature range: -30℃ to +70℃
• Built-in active PFC function
• High I/O isolation test voltage up to 4000VAC
• Output short circuit, over-current, over-voltage,
  over-temperature protection
• LED indicator for power on
• Built-in DC fan
• Emissions meets CISPR32/EN55032 CLASS B
