Product Details
Stepper Motor Linear Actuator. Stroke 500mm. Speed 8mm/S. Load 700N. Installation Size (Retracted) 605mm. Voltage 12 – 24VDC. Protection Grade IP43. Recommended Stepper DRIVER-HKD STEPPER MOTOR DRIVER M542

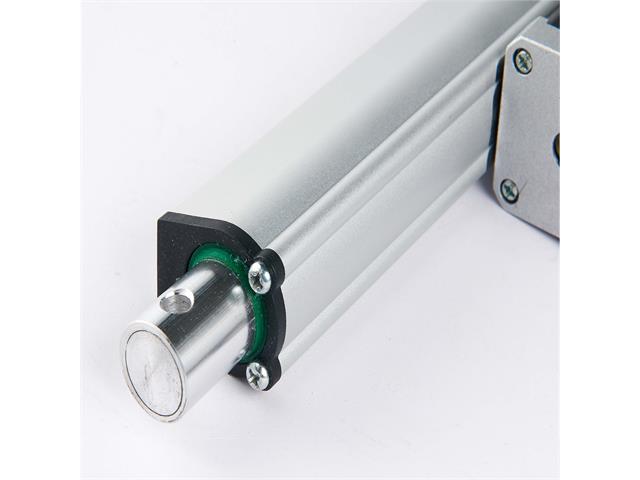

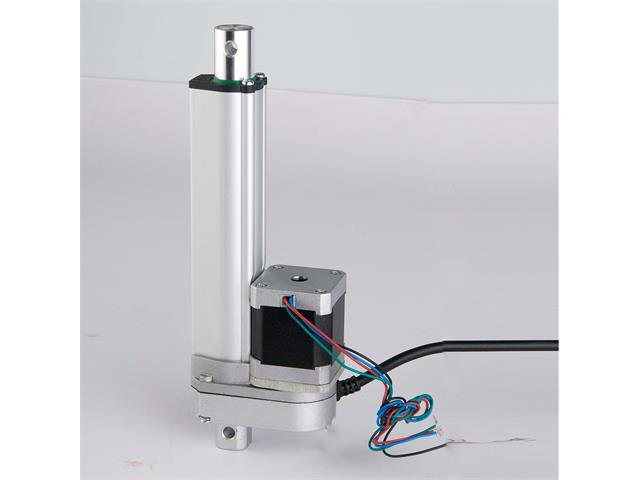

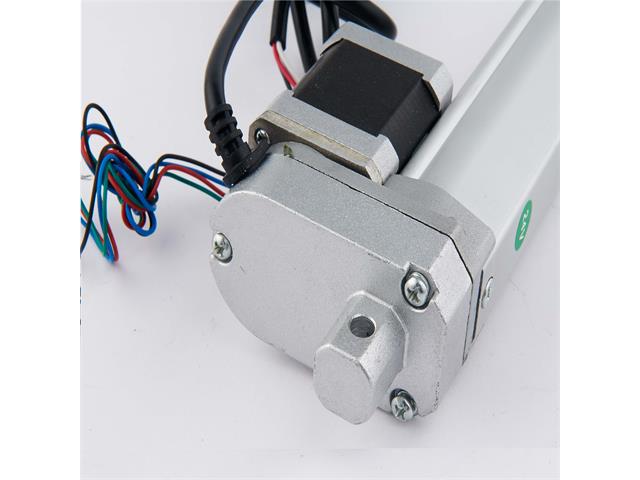

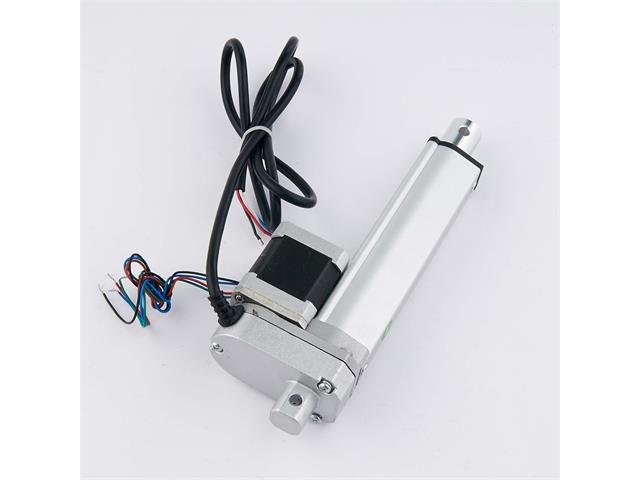

Stepper Motor Linear Actuator
Specifications
Actuator
- Travel or Stroke (S) Length: 500mm
- Voltage: 12Vdc to 24Vdc (power supply input to servo drive)
- Torque: 700N
- Speed: 8mm/sec (no load)
- IP43
- Aluminium outer tube and stroke rod
- Duty cycle: 10%

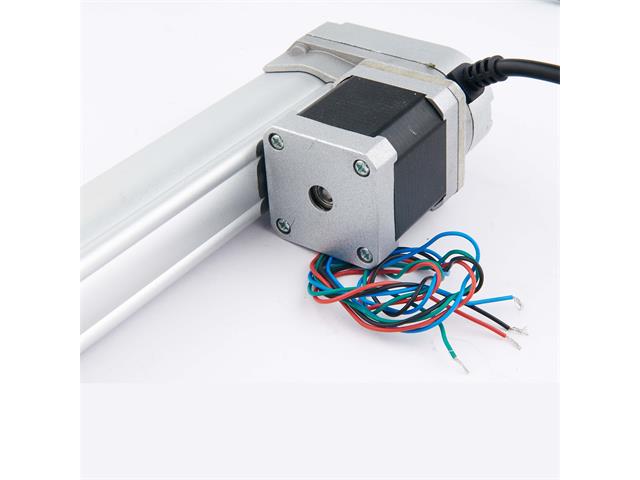

Stepper Motor
- Phase: 2
- Step angle: 1.8 degrees (200 steps per revolution)
- Voltage: 2.8V
- Current: 1.68A
- Resistance: 1.65 ohms
- Inductance: 2.3mH
- Holding torque: 5 kg.cm
- Insulation class: B
Stepper motor drive
- Required, but not included
- HKD STEPPER MOTOR DRIVER M542 is recommended
|
MODEL |
STROKE (S) |
INSTALLATION SIZE (L) {RETRACTED} |
MAX - INSTALLATION {EXTENDED} |
WEIGHT (KG) |
|
LKT STEPPER ACTUATOR 500MM 700N |
500mm |
605mm |
1105mm |
1.47kg |
Additional Information
| Device | Linear Actuator |
| Type | Stepper Motor |
