DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 24VDC @ 2,5A 4KVAC Isolation (HDR-60-24)
DIN RAIL PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

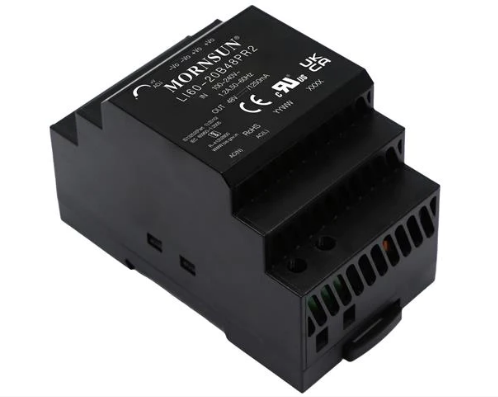

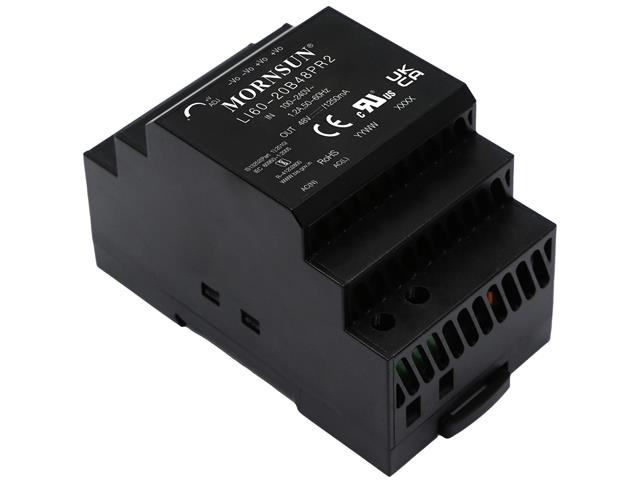

LI60-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. Theproductsoffer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety sepecifitionsmeetIEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremelycompactdesign for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applicationsinaharsh environment
FEATURE
- Universal 85-264VAC or 120-370VDCinput voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -40℃to+70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltageprotection
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to EN61558
SPECIFICATIONS
| Type | DIN Rail Single Output |
| Output Power | 60W |
| Series | LI60-20B |
| Part Number | LI60-20B24PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 24V |
| Output Current |
2.5A |
| Input voltage range | 85-264VAC; 120-370VDC |
| Inrush current (max.) | Cold start, 60A at 230VAC |
| Output voltage adjustable range | 21.6-29V |
| Efficiency at 230VAC | 90% |
| Max. capacitive load | 40000µF |
| Input current (max.) | 0.8A at 230VAC |
| Short circuit protection | Hiccup, continuous, self-recovery |
| Over-current protection | ≥120% Io, self-recovery |
| Withstand voltage | 300VAC |
| Working temperature | -40 - 70°C |
| Connection | Terminal block |
| Package dimensions | 92.66 x 52 x 58 mm |
| Weight | 175 gm |
| Cooling method | Free air convection |
| Case material | Plastic, heat-resistant (UL94V-0) |
| MTBF | >300000 Hrs |
| Safety class | CLASS II |
| Safety standards | UL62368/EN62368/IEC62368 |
| EMC standards | CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m |
| Certification | CE, RoHS |
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Switch Mode |
| Size | W-52mm x H-93mm x D-58mm |
