Product Details

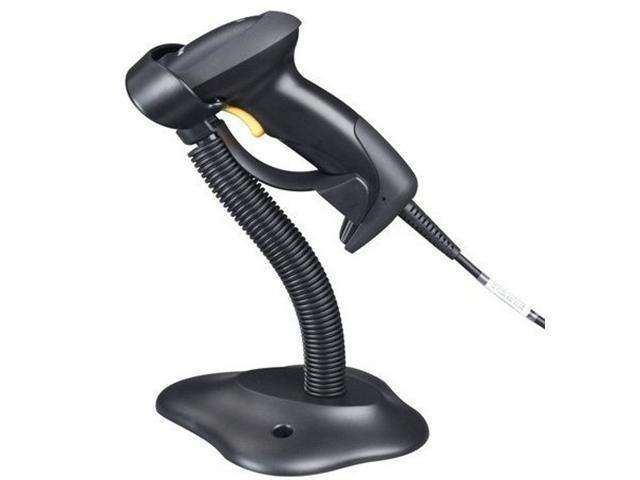

Mindeo Laser Barcode Scanner USB Includes Stand IP52
Overview
Features
- Maximal decode resolution at 5mil
- Long decode range up to 1.5 meters
- Decode all major 1D barcode symbologies including GS1 DataBar
- Mirror surface reflection cancellation
- Over ten-million times for button-press
- With IP52 high performance ingress protection
- Passed multiple 4.0-meters-high drop test
- Ready for all POS systems
- Easy firmware upgrade
- Flexible software customization
- Ergonomic, snappy and stylish design
Specification
- Input Voltage : 5 VDC ± 0.25V
- Power : 500 mW (Operating); 950 mW (Max.)
- Current : 100 mA (Operating); 190 mA (Max.)
- Standby Current : <250μA
- Laser : 650nm Laser Diode
- Decoding Rate : 200 Times/sec
- Scanning Angle : ±60°, ±65°, ±42° (Skew, Pitch, Roll)
- Decode Capability : All major 1D barcode symbologies including GS1 DataBar variants
- Indicator : Beeper, LED
- Interface Supported : Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
- Operating Mode : Hand-held, Infra-red induction for MD2250AT Plus & MD2230AT Plus
- Dimensions : 9.5cm H × 6.7cm W × 15.4cm D
- Weight : 168g, Without Cable
- Cable : Straight 2.0m
- Connector Type : RJ-45 phone jack connector
- Case Material : PC+TPU
- Temperature : 0° to 50°C (32° to 120°F), Operating; -40° to 60°C (-40° to 140°F), Storage
- Humidity : 5% to 95% (non-condensing)
- Programming Method : Manual (reading special barcode)
- Program Upgrade : Online
Decoding Depth & Max. Resolution:
- 5 mil: 40-110mm
- 10 mil: 10-280mm
- 13 mil: 15-315mm
- 16 mil: 25-385mm
- 35 mil: 145-630mm
Safety:
- Laser Safety : EN60825-1, Class 1
- EMC : EN 55022, EN 55024
- Electrical Safety : EN 60950-1
- Drop Resistance : Multiple 4.0m (13.1 ft) drops to concrete
- Protection Class: IP52
