Product Details
Infrared Emitting Diode SMD-1104 VA=120D
Infrared Emitting Diode
Overview

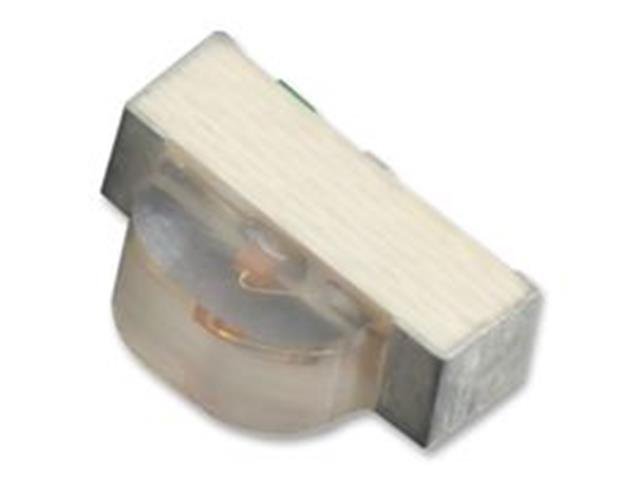

The KPA-3010F3C is an Infrared Emitting Diode with water clear lens, SMD mounting, 940nm wavelength and 120° viewing angle. The infrared light emitting diode is made with GaAs.
Specifications
- Peak Wavelength: 940nm
- Angle of Half Intensity: 120°
- Diode Case Style: SMD
- Radiant Intensity (Ie): 3mW/Sr
- Forward Current If(AV): 20mA
- Forward Voltage VF Max: 1.2V
- Operating Temperature Min: -40°C
Downloads
Additional Information
| Device | Diode |
| Type | Infrared | Emitting |
