Product Details

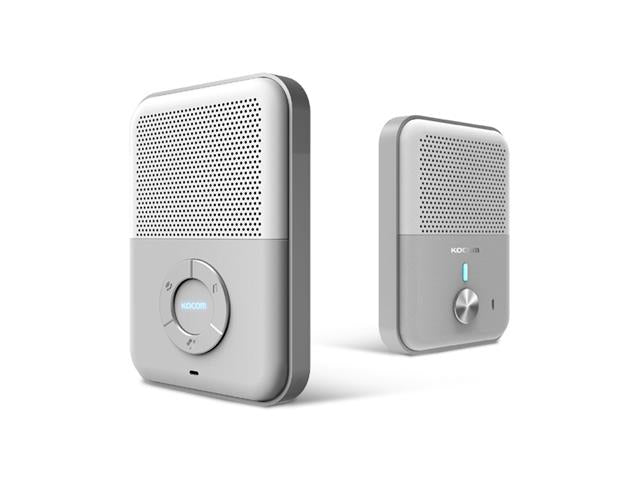

Kocom Hands Free Audio Intercom 1:1, Doorphones Extention Upto 4 Units, KDP-Q81F:100-240V 50/60Hz , KD-Q81T:12VDC±2V (Supply From Doorphone) Surface Mount (IC-18HF)
Hands Free Audio Intercom 1:1
Features
- Calling to & Phone call with sub-unit at the entrance
- Phone calling and door opening
- Connection with doorlock by AC or DC type
- LED brightness control for checking operating status
- Doorphones extension upto 4 units
- Mutual beeping & calling through doorphones
Specifications
| Power source | KDP-Q81F : 100-240V~,50/60Hz |
|---|---|
| Power consumption | KDP-Q81F : 1.3W(On stand by), 4W(Full load) |
| Operating temperature | KDP-Q81F : 0℃ ~ + 40℃ |
| Dimension | KDP-Q81F : 119(W) X 170(H) X 30(D)mm |
| Wiring | Audio outdoor panel : polarized 3 wire Door open : non-polarized 4 wire (power separate) |
| Mount type | Surface mount |
| Communication system | Hands-free type |
Downloads
Additional Information
| Device | Audio Intercom |
| Type | Hands | Intercom | 1:1 |
