Product Details

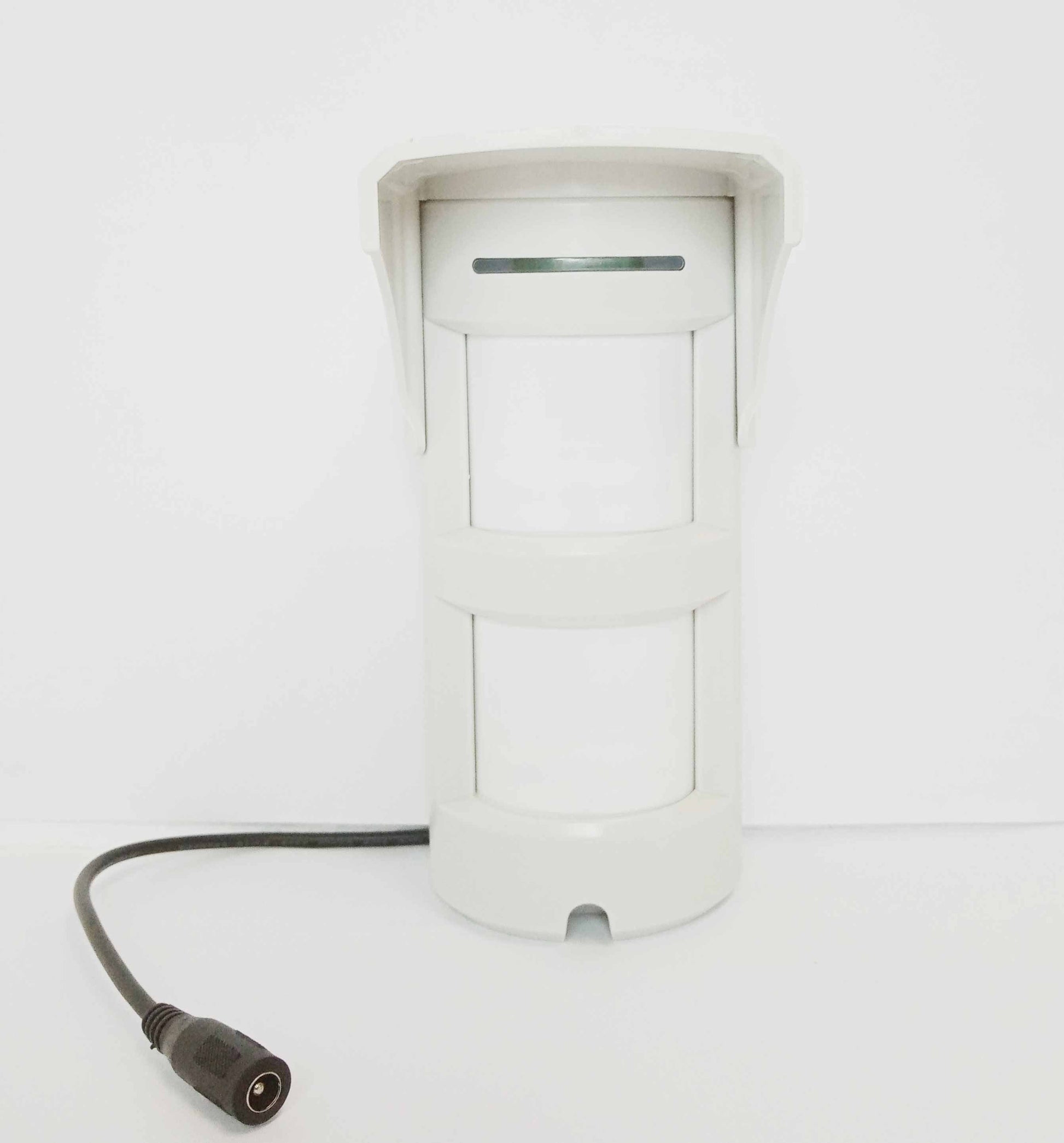

Outdoor Wireless Dual PIR Detector (25KG Pet Immunity) For Integra Alarm Panels. NOTE : Wireless model has DC Cable coming out of Unit (Wired model does not have the DC Cable)
Outdoor Wireless Dual PIR Detector for Integra Alarm Panels
Features
- Adopts Microprocessor
- Special filter lens, White light immunity 10000Lux
- Bug guard
- Dual sensor to prevention false alarms
- Temperature auto-compensation to adapt environment change
- Alarm output N.C/N.O optional to adapt different alarm system
- Pet (<20kg) Immunity
Specifications
- Working voltage : 9-16V
- Working current : <28mA(l2Vdc)

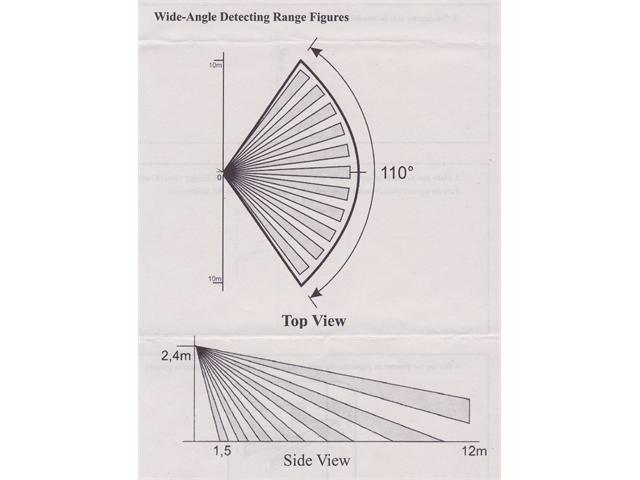

- Detecting range : Wide-angle lens l2m, curtain lens Sm
- Detecting range : Wide angle lens ll0 ° ,curtain lens 15 °
- Sensor type : Dual element low-noise pyroelectric infrared sensor
- Warm-up time : 60Sec
- Pulse count : Wide angle 1P and 2P, curtain 1P only
- Installation : Wall hanging
- Mount height : Optional height 2.2m
- Operation temperature : -10°C~50°C(14°F~l22°F)
- Relay output : N.C/N.O optional, contact rating 28Vdc, 80mA
- Anti-tamper switch : NC. Without voltage output contact rating 28VDC, lO0mA
- Size : 157x70x42mm
Additional Information
| Device | PIR Sensor |
| Type | Wireless | Dual | Outdoor |
