Product Details

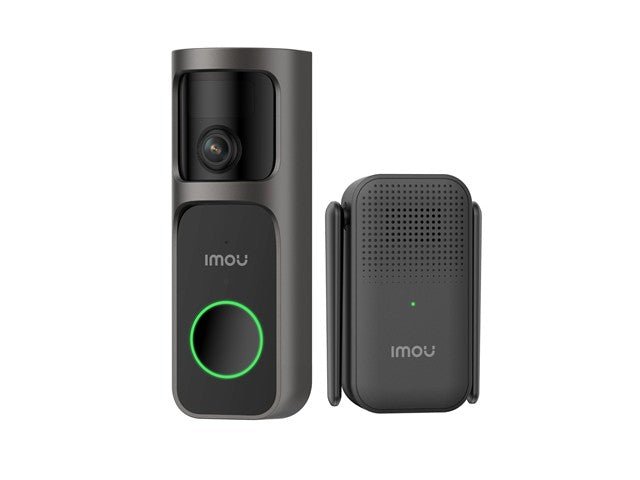

IMOU Doorbell 3 Kit - Video Doorbell: 1/3" CMOS 4MP 0.98mm Fisheye Lens, 360° Panoramic View, 5m IR, 5000MAH Rechargeable Batt , Pir+ Ai Human Detection, Two-Way Talk, 8x Digital Zoom, Chime as WiFi Repeater 240VAC, AI Package Detection
4MP Wire-Free Video Doorbell
Specifications
Video Doorbell
- 1/3” Progressive CMOS
- 4MP (1920 x 1920)
- Night Vision: 5m(16.5ft) Distance
- 0.98 mm Fisheye Lens, 360° Panormaic View
- Field of View: 180°(H), 180°(V)
- 5000mAh Rechargeable Battery
Auxiliary Interface
- Video Doorbell:
- Built-in Mic & Speaker
- Power On / Off Button
- Chime:
- Micro SD Card Slot (up to 512GB)
- Built-in Speaker
- Reset Button
Video & Audio
- Video Compression : H.265
- Up to 15fps Frame Rate
- Two-way Talk
- 8x Digital Zoom
General
- Video Doorbell:
- Charging Power: DC 5V 1A, Type-C Port
- Optional Hardwired Power Supply (8~24VAC, ≥5VA)
- Power Consumption: up to 2.27W
- Working Environment: -20°C~+50°C, Less Than 95%RH
- Charging Temperature: 0°C~+45°C
- Dimensions: 150 × 55 × 50.3 mm (5.9× 2.2 × 2.0 inch)
- Weight: 220g (0.5 lb)
- CE, Weatherproof
- Chime:
- AC Power Supply: 100~240 VAC
- Power Consumption: up to 3W
- Working Environment: -10°C~+45°C, Less Than 95%RH
- Dimensions: 95.5 × 65.1 × 30.2mm(3.8× 2.6 × 1.2 inch)
- Weight: 79g (0.2 lb)
- CE
Notice Management
- Doorbell Call Notification
- PIR Motion / AI Human Detection
- Loitering Detection
- Auto Power Saving Mode
Network
- Wi-Fi: IEEE802.11b/g/n, 2.4GHz

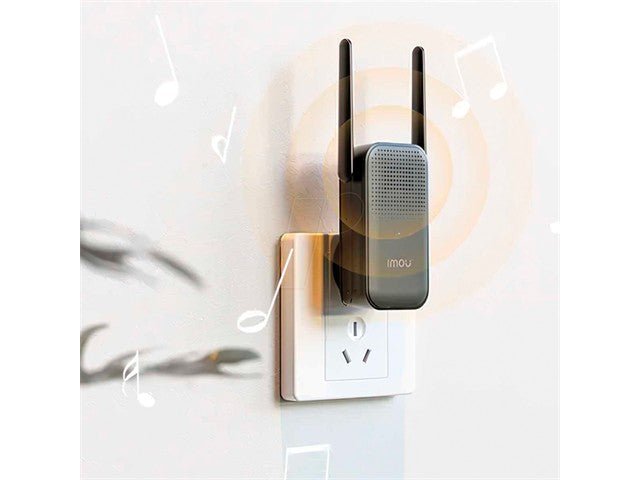

- Chime works as the Wi-Fi extender for the Doorbell
- imou App: iOS, Android
What’s in the box
- 1x Doorbell
- 1x Quick Start Guide
- 1x Surface Mounting Bracket
- 1x USB Charging Cable
- 3 Wire Nuts
- 2x 3M Glue
- 1x Chime Plug
- 1x Screw Package
- 1x Pin
- 1x Installation Position Map
- 2x Extension Wire
- 1x Jumper Wire
- 1x Chime
Downloads
Additional Information
| Device | Video Doorbell |
| Type | 4MP | Wire-Free |
