Product Details

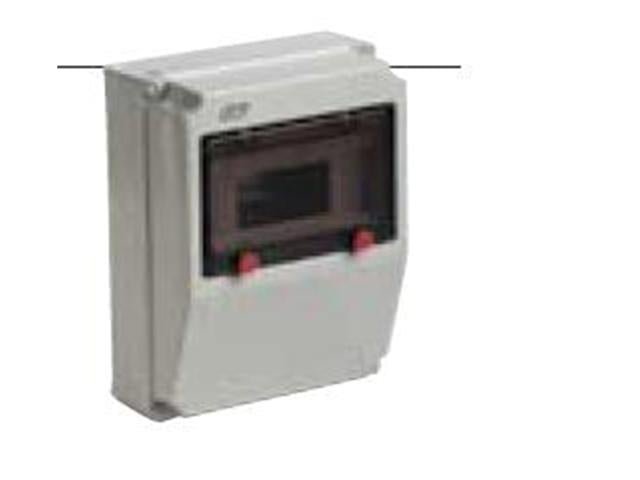

Enclosure for Sockets and Automatic Switches • IP-67 • 284x222x122mm
Feature(s)
1x9 modules DIN rail
References with Earth and Neutral Bars
References with Earth and Neutral Bars
Additional Information
| Code | 10002 |
| Reference | 178P/RR |
| Group | Industrial Enclosures |
| Series | Pryma |
| Device | Enclosure for Sockets and Automatic Switches |
| Type | Grey with Transparent Window |

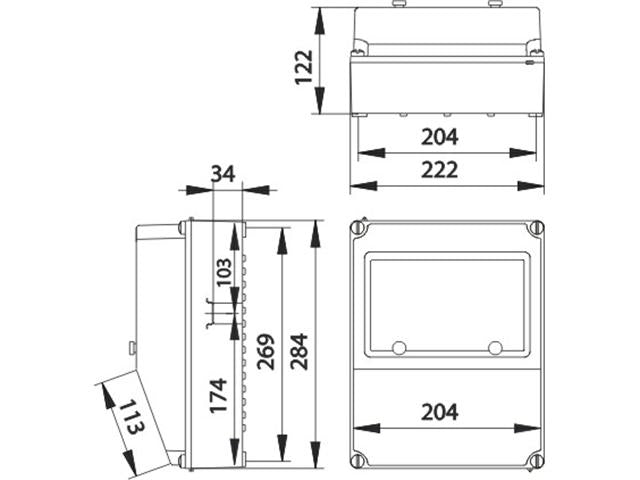

| Size | 284mm x 222mm x 122mm |
| Degree of Protection | IP-67 |
| Resistance to Impact | IK08 |
| Auto- Extinguishing Degree | HJB (UL94) |
| Test Of Resistance to Glow Wire | 650°C |
| Ball Pressure Test | 70°C |
