Product Details

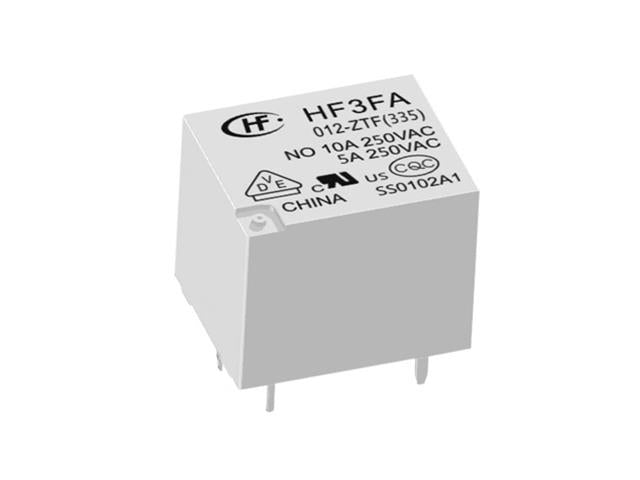

High Power Sub-Mini "Sugar Cube" Sealed Relay Form 1C (1c/o) 12VDC 400 Ohm Coil 10A 250VAC (277VAC/28VDC Max.) - Class F Insulation
High Power Sub-Mini "Sugar Cube" Sealed Relay
Features
- 5A 125VAC;10A 250VAC switching capability
- Flammability class according to UL94, V-0
- CTI 250 available
- Product in accordance to IEC 60335-1 available
- 1 Form A and 1 Form C configurations
- Subminiature, standard PCB layout
- UL insulation system: Class F
Downloads
Additional Information
| Device | Relay |
| Type | High Power | Sub-Mini | Sugar Cube | Sealed | Relay |
| Contact Form | Form 1C |
| Coil Rated Voltage | 12V |
| Max. Switching Current | 10A |
| Coil Resistance | 400Ω |
