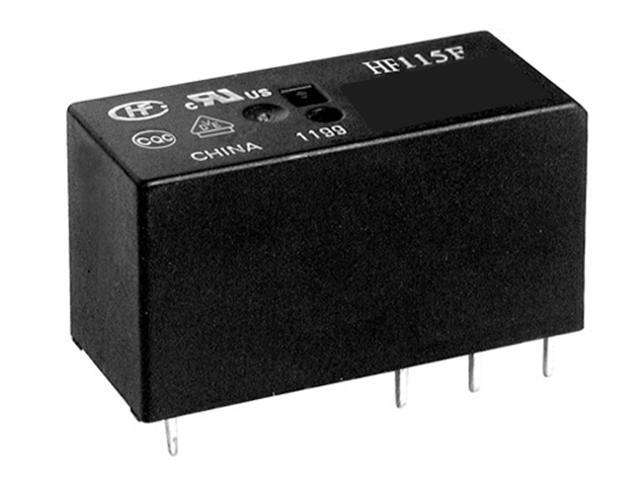

HF115F-005-1ZS1A

HF115F-005-1ZS1A

Dhs. 8.61
Dhs. 8.61
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Miniature High Power Relay, Form 1C, VCoil= 5V DC, IMax Switching= 12A , RCoil= 62Ω, PCB, in Low Profile Case
Specifications
Plastic Sealed
Low Profile Case ,Insulation Class B
10mm Creepage Distance
3.5mm Pin Pitch



Additional Information
Model : HF115F-005-1ZS1
Contact Form : Form 1C
Size Category : Mini
Size : 29.0x12.7x15.7mm
Termination : PCB
Coil Rated Voltage : 5V
AC/DC Voltage : DC
Max. Switching Current : 12A
Electrical Rating : 12A | 250VAC
Coil Power : 400mW Power
Coil Resistance : 62Ω
Isolation Voltage : 5KV
Approvals : UL/CUR/VDE/FIMK.
Contact Material : AgCdO
No. of Pins : 5 Pin(s)
No. of Poles : 1 Pole(s)

Downloads
HF115F Datasheet(PDF)
