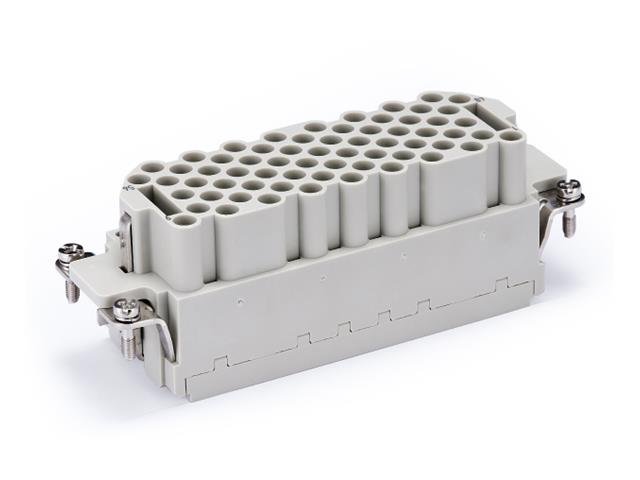

Series 64EEE (C) Insert 64P+E - Size 16B - Female Crimp Termination 16A/500V = 09320643101
Series 64EEE (C) Insert 64P+E
Specifications
Product parameters
| Inserts |
| Number of contacts |
64+PE |
| Electrical data acc. to EN 61 984 |
|
| ---Rated current |
16A |
| ---Rated voltage |
500V |
| ---Rated impulse voltage |
6kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
16A 830V 8kV 2 |
| Rated voltage acc. to UL |
600V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃...+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Material |
copper alloy |
| Surface |
hard-gold plated |
| hard-silver plated |
| Contact resistance |
≤1mΩ |
| Crimp terminal |
|
| ---Wrie gauge |
0.14-4.0mm2
|
| ---AWG |
26-12 |
| ---Stripping length |
7.5mm |
Downloads
Additional Information
| Device |
Insert |
| Type |
Series 64EEE (C) | 64P+E | Size 16B |
