Transistor NPN Darling

Specifications

Type	Transistor NPN Darling

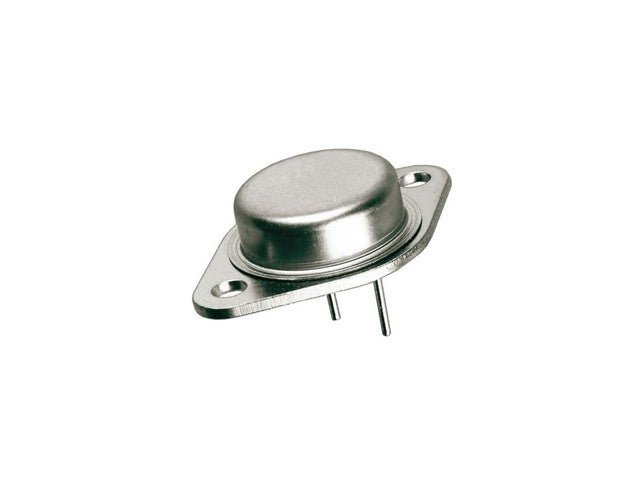

Case	TO3
Vbr CEO	400
t(f) Max. (S)	500n-
Ic Max. (A)	15
Mat.	Silicon Logic
Polarity	NPN
t(stor) Max. (S)	15u-
Oper. Temp (°C) Max.	175
Pinout Equivalence Number	3-14
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	175 W
Maximum Collector-Base Voltage \|Vcb\|	500 V
Maximum Collector-Emitter Voltage \|Vce\|	400 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	15 A
Max. Operating Junction Temperature (Tj)	170 °C
Forward Current Transfer Ratio (hFE), MIN	40
