BMT FSR402 FORCE SENSITIVE RESIS

BMT FSR402 FORCE SENSITIVE RESIS

Prix habituel Dhs. 82.61
Prix habituel Prix promotionnel Dhs. 82.61
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Afficher tous les détails

Product Details

FSR402 0.5"(12.7mm) Thin Film Force Sensor Pressure Sensor 100G to 10 KG. Size L: 75mm W: 20mm H: 11mm

Thin Film Force Sensor Pressure Sensor

Overview

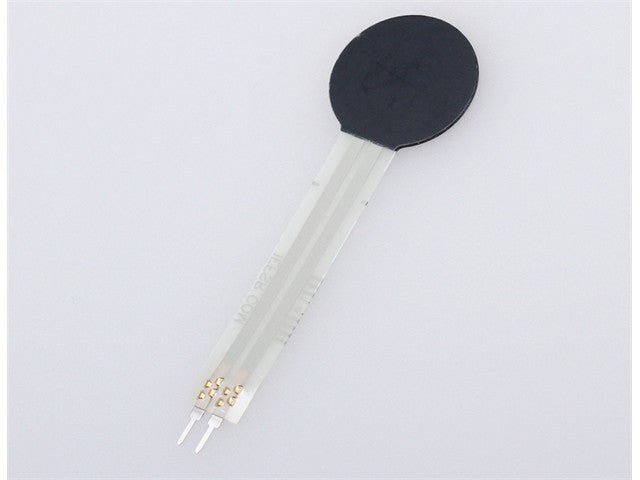

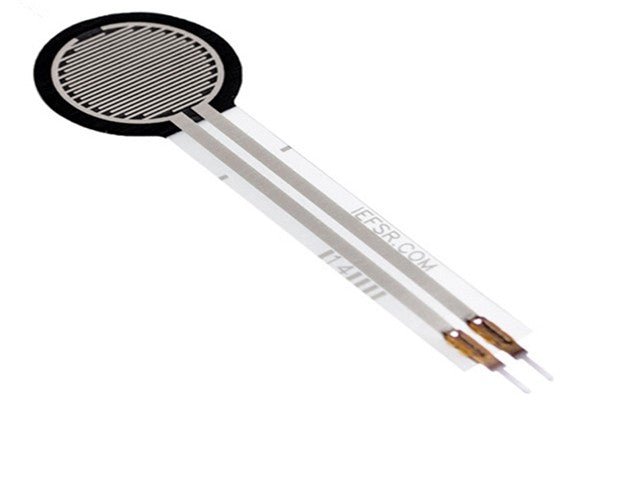

This is a force sensitive resistor with a round, 0.5" diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1M. This FSR can sense applied force anywhere in the range of 100g-10kg. Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly. There is a peel- and-stick rubber backing on the other side of the sensing area to mount the FSR. These sensors are simple to set up and great for sensing pressure, but they aren't incredibly accurate. Use them to sense if it's being squeezed, but you may not want to use it as a scale.

Specifications

  • Sensing area: 0.5 ” circle
  • Output signal: Passive variable resistance
  • Force sensitive range: 100g to 10 kg
  • Lifetime: > 10 million actuations
  • Dimensions: Overall
  • length: 2.375"
  • Overall width: 0.75"
  • Sensing diameter: 0.5"

Downloads

Additional Information

Device Pressure Sensor
Type Thin Film | Force Sensor
