Product Details

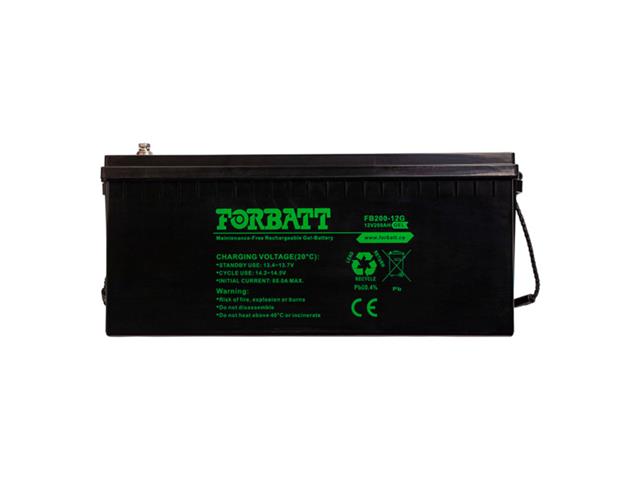

Rechargeable Battery 12V200AH Gel { L=524 W=239 H=218mm } T11 Terminal M8 Stud 62kg
12V200AH Gel Rechargeable Battery
Specifications
- Nominal Voltage : 12V
- Rated Capacity (20hr Rate) : 200Ah
- Dimensions
- Length : 20.63inches (524mm)
- Width : 9.41inches (239mm)
- Height : 8.58inches (218mm)
- Total Height : 8.90inches (226mm)
- Weight : Approx. 0.49kg
Characteristics
- Capacity 77°F(25°C)
- 20hour rate (10.0 A) : 200Ah
- 10hour rate (18.0 A) : 180Ah
- 5hour rate (34.0 A) : 170Ah
- 1hour rate (130 A) : 130Ah
- Internal Resistance
- Full Charged, 77°F(25°C) : 4mΩ
- Affected By Temperature (10hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge 77°F(25°C)
- Capacity after 3 month storage : 90%
- Capacity after 6 month storage : 85%
- Capacity after 9 month storag : 65%
Charge (Constant Voltage)
- Initial Charge Current “LESS” than 0.42A
- Cycle : 14.2–14.5V/77°F(25°C)
- Stand By : 13.4–13.7V/77°F(25°C)
Downloads
Additional Information
| Device | Battery |
| Type | 12V200AH | Gel | Rechargeable |
