Product Details

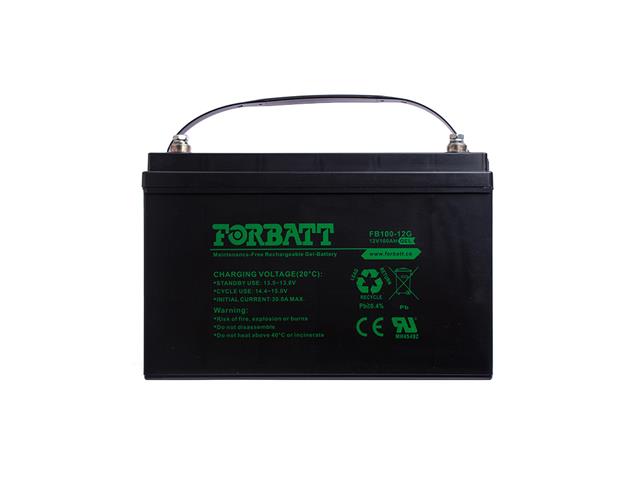

Rechargeable Battery 12V100AH Gel {L=330 W=174 H=219mm} F5/F12 Terminal M8 30kg
Gel Rechargeable Battery
Specifications
- Nominal Voltage : 12V
- Rated Capacity (20hr Rate) : 100Ah

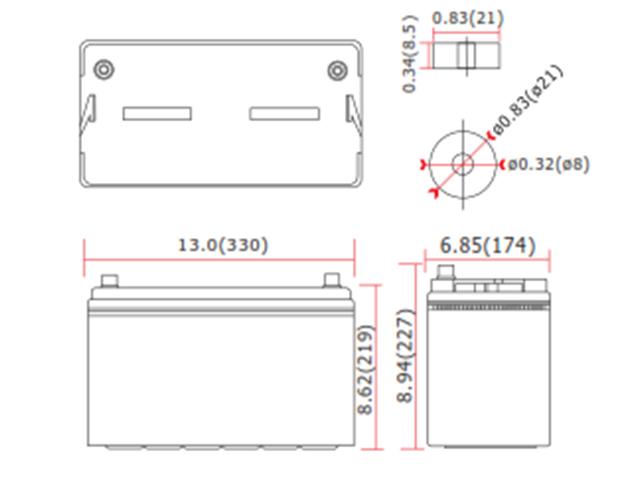

- Dimension
- Length : 13.0inches (330mm)
- Width : 6.85inches (174mm)
- Height : 8.62inches (219mm)
- Total Height : 8.94inches (227mm)
- Weight : Approx. 66.14lbs (30.1kg)
- Capacity 77°F(25°C)
- 20hour rate (5.0A) : 100Ah
- 10hour rate (9.2A) : 92Ah
- 5hour rate (17.0A) : 85Ah
- 1hour rate (65.0A) : 65Ah
- Internal Resistance
- Full Charged, 77°F(25°C) : 5mΩ
- Capacity Affected By Temperature (10hr Rate)
- 104°F(40°C) : 102%
- 77°F(25°C) : 100%
- 32°F(0°C) : 85%
- 5°F(-15°C) : 65%
- Self-Discharge77°F(25°C)
- Capacity after 3 month storage : 90%
- Capacity after 6 month storage : 80%
- Capacity after 9 month storage : 60%
- Charge (Constant Voltage)
- Initial Charge Current “LESS” than 30A
- Cycle : 14.2–14.5V/77°F(25°C)
- Stand By : 13.4–13.7V/77°F(25°C)
Downloads
Additional Information
| Device | Battery |
| Type | Gel | Rechargeable |
| Electrochemical System | Gel |
| Nominal Voltage | 12V |
| Nominal Capacity | 100AH |
| Rechargeable | True |
