Product Details

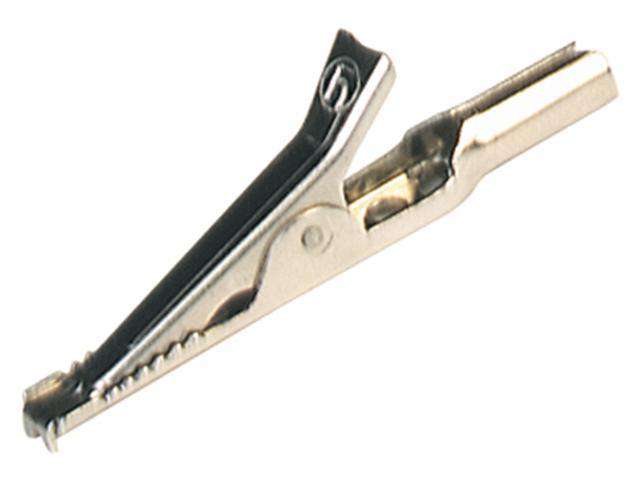

4mm Un-Insulated Croc Clip • Steel
Overview
Features
- Nickel Plated Stainless Steel
- Special Shape allows clamping of both extremely fine and thick wires
- Rust and acid proof and non-magnetic
Specification
| connection | unsprung socket 4 mm |
| rated voltage(1) | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | OÂ (3) |
| rated current(1) (consider derating curve) |
4 A |
| material socket | stainless steel |
| temperature range acc. To IEC61010(2) | -25 °C to +100 °C |
| clamping range | 10 mm |
| standard | IEC 61010 |
(1) for normal environmental conditions -5°C to +40°C
(2)Â contact the manufacturer for applications at deviating temperature ranges
(3)Â without rated measurement category, for other circuits that are not directly connected to mains
