Product Details

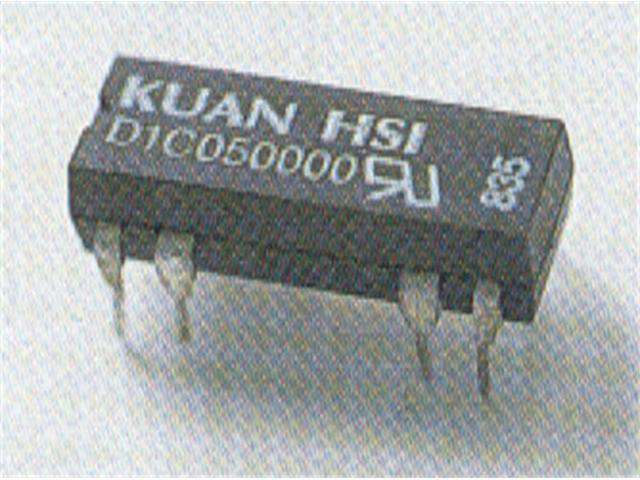

DIL Reed Relay • Form 1C • VCoil= 12V DC • IMax Switching= 250mA • RCoil= 500Ω • PCB Std Pin L/O • with Diode
Overview
Features
Specification
- With Diode
Model 831C-4 MOD Contact Form Form 1C Size 20x8x6mm Termination PCB Coil Rated Voltage 12V AC/DC Voltage DC Max. Switching Current 250mA Electrical Rating 250mA/100VDC Coil Resistance 500Ω Isolation Voltage 500V Pin Layout DIL No. of Poles 1 Pole(s)
