Product Details
Pointek CLS300 RF Capacitance Point Level Switch, Rod Design. Detects Level And Interface In Aggressive Liquids, Solids, Slurries, And Foam.

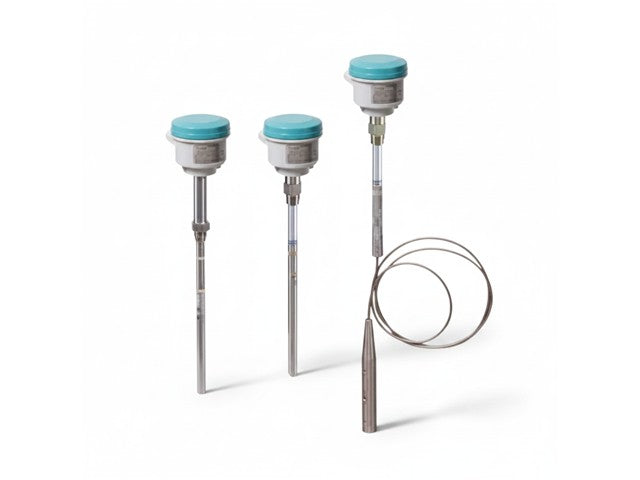

Pointek CLS300 RF Capacitance Point Level Switch
Specifications
- Manufacturer: Siemens
- Product family: Pointek CLS300
- Type: RF capacitance point level switch
- Measurement technology:
- RF capacitance level detection
- Point level and interface detection
- Application media:
- Aggressive liquids
- Solids
- Slurries
- Foam
- Probe design:
- Rod type probe
- Insertion length:
- Adjustable up to 1 m (3.28 ft)
- Probe length:
- 350 mm (13.78") standard rod version
- Sensitivity:
- Adjustable sensitivity
- Special technology:
- Active shield technology to reduce buildup interference on probe
- Process connection:
- Threaded connection
- R 1" BSPT
- Stainless steel 316L (1.4404)
- Probe material:
- 316L stainless steel
- PFA lining
- PEEK isolators
- Wetted seals:
- FKM seals
- Housing material:
- Epoxy-coated aluminum housing
- Cable entries:
- 2 × M20 × 1.5
- Protection rating:
- IP65
- Approvals:
- CSA General Purpose
- FM approved
- Operating capability:
- Detects level and interface reliably in harsh environments
- Switch output:
- Relay output
- Mounting orientation:
- Vertical mounting
- Pressure rating:
- Up to 35 bar
- Operating temperature:
- Approx. -40 °C to +400 °C (depending on configuration)
- Calibration:
- Key-operated calibration
- Indicators:
- LED status indicators for power and switching status
- Applications:
- Mining industry
- Chemical processing
- Water & wastewater
- Bulk solids handling
- Industrial process automation
- Additional features:
- Resistant to buildup and abrasive materials
- Rugged industrial construction
- Suitable for harsh industrial environments
