Siemens SITRANS P320 Pressure Transmitter Gauge Hart (4...20 mA) Max Measure Span: 160 Bar Female. Third. 1/2-14 NPT Diaphragm: Stainless Steel 316L

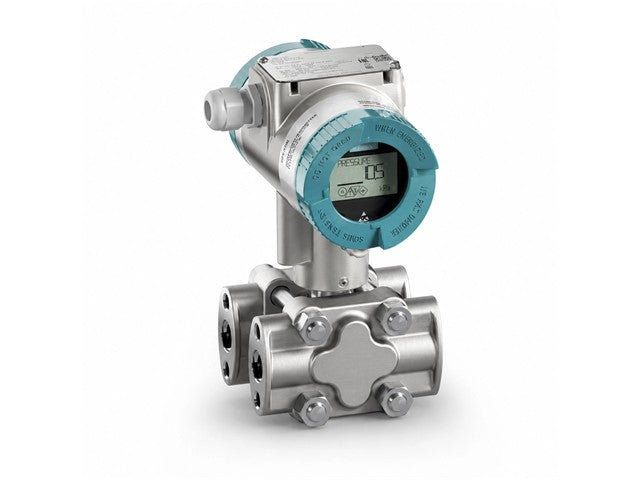

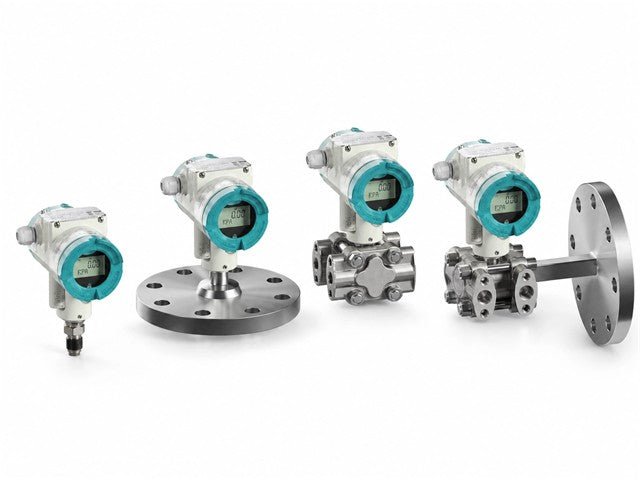

Siemens SITRANS P320 Pressure Transmitter
Specifications
- Manufacturer: Siemens
- Product family: SITRANS P320
- Type: Pressure transmitter (Gauge pressure)
- Measurement type:
- Gauge pressure measurement
- Output signal:
- HART protocol
- 4…20 mA analog output
- Measuring cell filling:
- Silicone oil
- Maximum measuring span:
- 160 bar (2321 psi)
- Process connection:
- Female thread 1/2-14 NPT
- Wetted parts material:
- Stainless steel 316L / 1.4404
- Seal diaphragm: Stainless steel 316L
- Sensor flange material:
- Stainless steel 316 / 1.4408
- Housing material:
- Die-cast aluminum housing
- Device design:
- Dual chamber design
- Explosion protection:
- Intrinsic safety (ATEX approved)
- Electrical connection:
- 2 × M20 × 1.5 cable entries
- Display:
- Integrated local display
- Glass window cover
- Option A00:
- Cable gland and sealing plug attached
- Option E20:
- ATEX (Europe) approval
- Option H02:
- Overvoltage protection up to 6 kV (internal)
- Protection features:
- Overvoltage protection
- Industrial EMC protection
- Intrinsic safety protection
- Communication protocol:
- HART communication for diagnostics/configuration
- Mounting type:
- Process mounting via threaded pressure connection
- Applications:
- Industrial process automation
- Oil & gas systems
- Chemical processing
- Water treatment
- Hydraulic systems
- Pressure monitoring systems
- Additional features:
- High accuracy pressure measurement
- Remote configuration capability
- Suitable for hazardous industrial environments
