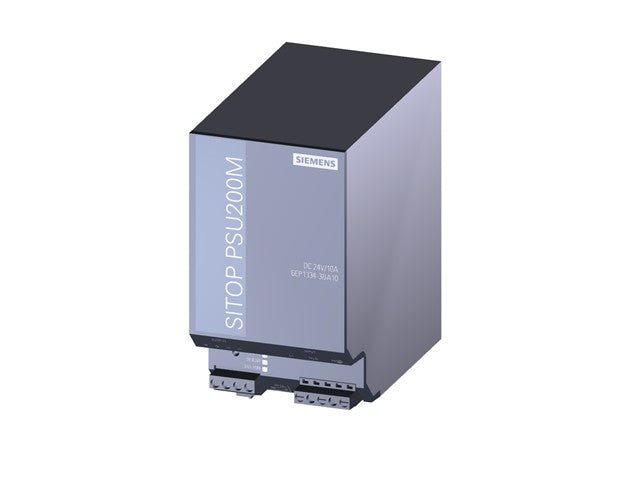

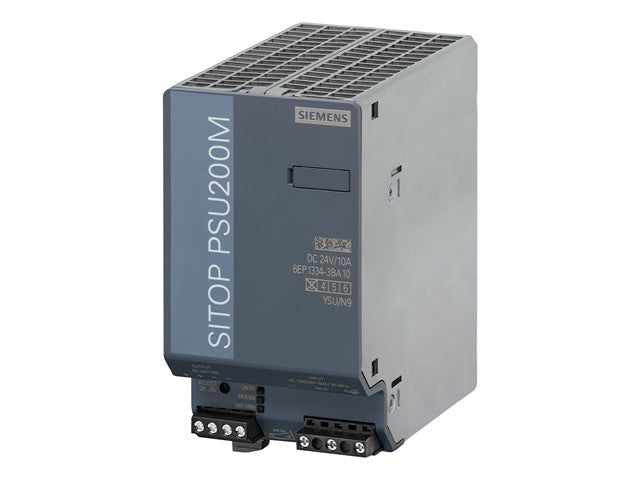

SITOP PSU200M 10 A Stabilized Power Supply Input: 120/230-500 V AC Output: DC 24 V/10 A (6EP1334-3BA00)
SITOP PSU200M 10 A Stabilized Power Supply
Specifications
- Manufacturer: Siemens
- Product series: SITOP PSU200M
- Product type: Industrial DIN-rail switched-mode power supply
- Input voltage (AC): 120–230 V AC / 230–500 V AC (wide range)
- Input voltage range: 85–264 V AC / 176–550 V AC
- Frequency: 50/60 Hz (47–63 Hz range)
- Output voltage: 24 V DC
- Output voltage adjustment: 24 – 28.8 V DC
- Output current: 10 A
- Output power: 240 W
- Efficiency: approx. 91%
- Ripple & noise: ≤ 50 mV
- Hold-up time: approx. 25 ms (typical higher at 230 V)
- Inrush current: max. ~35 A
- Protection features:
- Short-circuit protection (constant current / shutdown)
- Overload protection
- Overvoltage protection
- Parallel operation: supported (for increased load capacity)
- Status indication: LED indicators + relay contact signal output
- Mounting: DIN rail (EN 60715)
- Connection type: Screw terminals
- Protection class: IP20
- Operating temperature: 0 °C to +60/70 °C (with derating above 60 °C)
- Dimensions (W × H × D): 70 × 125 × 121 mm
- Weight: approx. 0.8–0.85 kg
- Application: Industrial automation, PLC systems, control panels, machine building
