Product Details

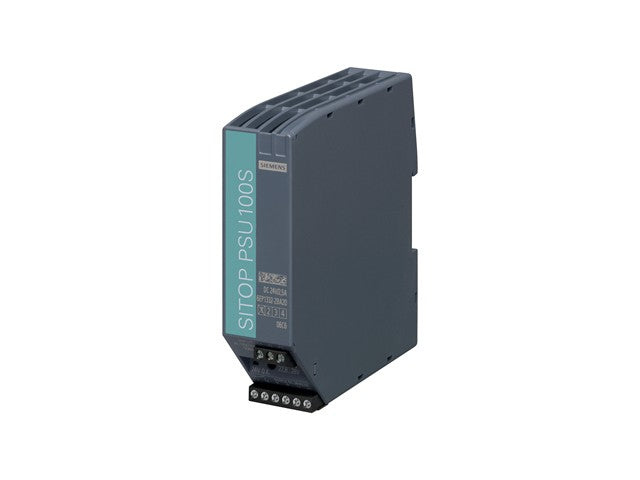

SITOP PSU100S 24 V/2.5 A Stabilized Power Supply Input: 120/230 V AC Output: 24 V DC/2.5 A
SITOP PSU100S 24 V/2.5 A Stabilized Power Supply
Specifications
- Part Number: 6EP1332-2BA20
- Brand: Siemens
- Product Series: SITOP PSU100S
- Product Type: Stabilized DIN rail power supply
- Input Voltage: 120/230 V AC
- Input Voltage Range: 85...132 V AC / 170...264 V AC
- Output Voltage: 24 V DC
- Adjustable Output Voltage: 22.8...28 V DC
- Output Current: 2.5 A
- Power Rating: 60 W
- Efficiency: Approx. 85%
- Mounting Type: DIN rail mounting
- Electrical Connection: Terminal block / screw terminal
- Protection Rating: IP20
- Operating Temperature: -25°C to +70°C
- Dimensions: 32.5 x 125 x 120 mm
- Weight: Approx. 0.32 kg
- Number of Outputs: 1
- Protection Features:
- Short-circuit protection (SCP)
- Overvoltage protection (OVP)
- Overload protection (OPP)
- Overtemperature protection (OTP)
- Brown-out protection (BOP)
- Compact industrial-grade switched-mode power supply
- Designed for PLCs, HMIs, sensors, and automation systems
- High efficiency reduces cabinet heat generation
- Adjustable DC output for flexible industrial applications
- Suitable for worldwide single-phase networks
- Reliable operation in harsh industrial environments
Downloads
Additional Information
| Device | Power Supply |
| Type | SITOP | PSU100S | 24 | V/2.5 A | Stabilized | Power Supply |
