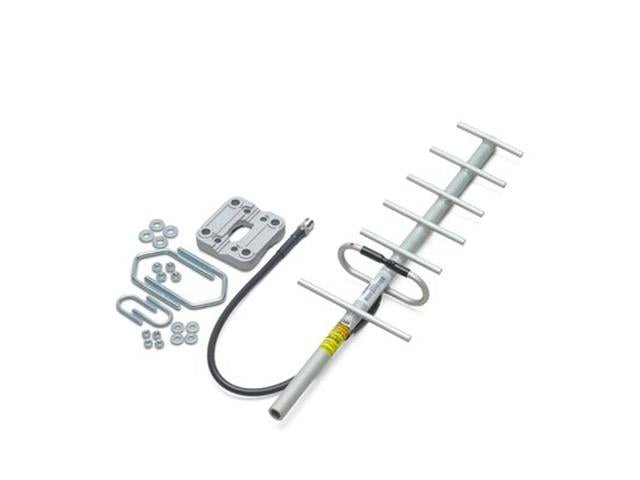

contrRAD-ISM-900-ANT-YAGI-10-N Directional Antenna
RAD-ISM-900-ANT-YAGI-10-N Directional Antenna
Overview
Directional antenna 868 MHz / 900 MHz, gain: 12 dBi, polarization: linear, opening angle: h/v 56°/46°, degree of protection: IP65, connection: N (female), incl. mounting bracket and mast clips
Specifications
| Frequency band | 900 MHz |
| Frequency range | 868 MHz ... 960 MHz |
| Impedance | 50 Ω |
Connection data
| Connection technology | |
| Connection method | N (female) with cable (0.6 m) |
| Outside diameter | 32 mm ... 60 mm (Mast) |
Dimensions
| Width | 60.5 mm |
| Height | 172 mm |
| Length | 609.6 mm |
| External dimensions | |
| Outside diameter | 32 mm ... 60 mm (Mast) |
Material specifications
| Material | Aluminum |
| V2A | |
| V2A |
Cable/line
| Cable length | 0.60 m |
| Connecting cable | yes |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Wind velocity | 15.4321 km/h |
Mounting
| Mounting type | Mast mounting |
Additional Information
| Device | Antenna |
| Type | Directional |
