Product Details
Simocode Operator Panel Titanium Gray, Installation In Control Cabinet Door Or Front Plate, Can Be Plugged Onto Basic Unit Or Extension Modules, 10 LEDs (3UF7200-1AA00-0)

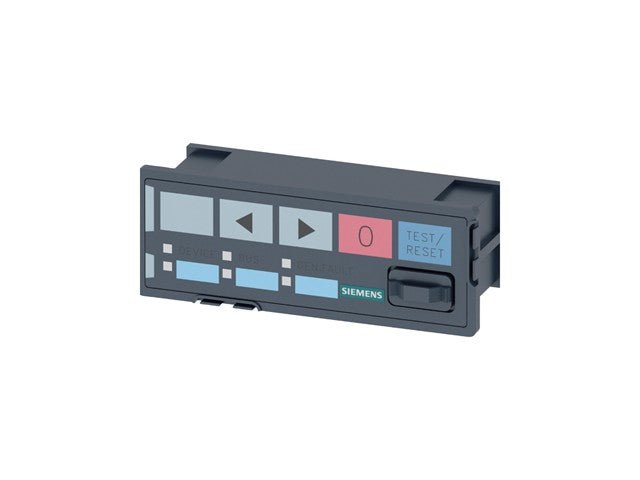

Simocode Operator Panel
Specifications
- Product type: SIMOCODE pro operator panel
- Color: Titanium grey
- Mounting: Control cabinet door or front plate
- Compatibility: Plugs onto SIMOCODE pro basic units or extension modules
- Status indication: 10 LEDs
- Control interface: 5 freely assignable keys for manual control
- Front protection rating: IP54
- Rated insulation voltage: 300 V
- Surge voltage resistance: 4 kV
- Power consumption: 0.1 W
- Mounting position: Any orientation
- Dimensions:
- Width: 96 mm
- Height: 36 mm
- Depth: 44 mm
- Operating temperature: -25 °C to +60 °C
- Storage/transport temperature: -40 °C to +80 °C
- Maximum installation altitude: 4000 m
- Net weight: Approximately 0.092 kg
- Certifications: CE, UL, CSA, CCC, RoHS compliant
Downloads
Additional Information
| Device | Operator Panel |
| Type | Simocode | Operator | Panel |
